Product Specifications

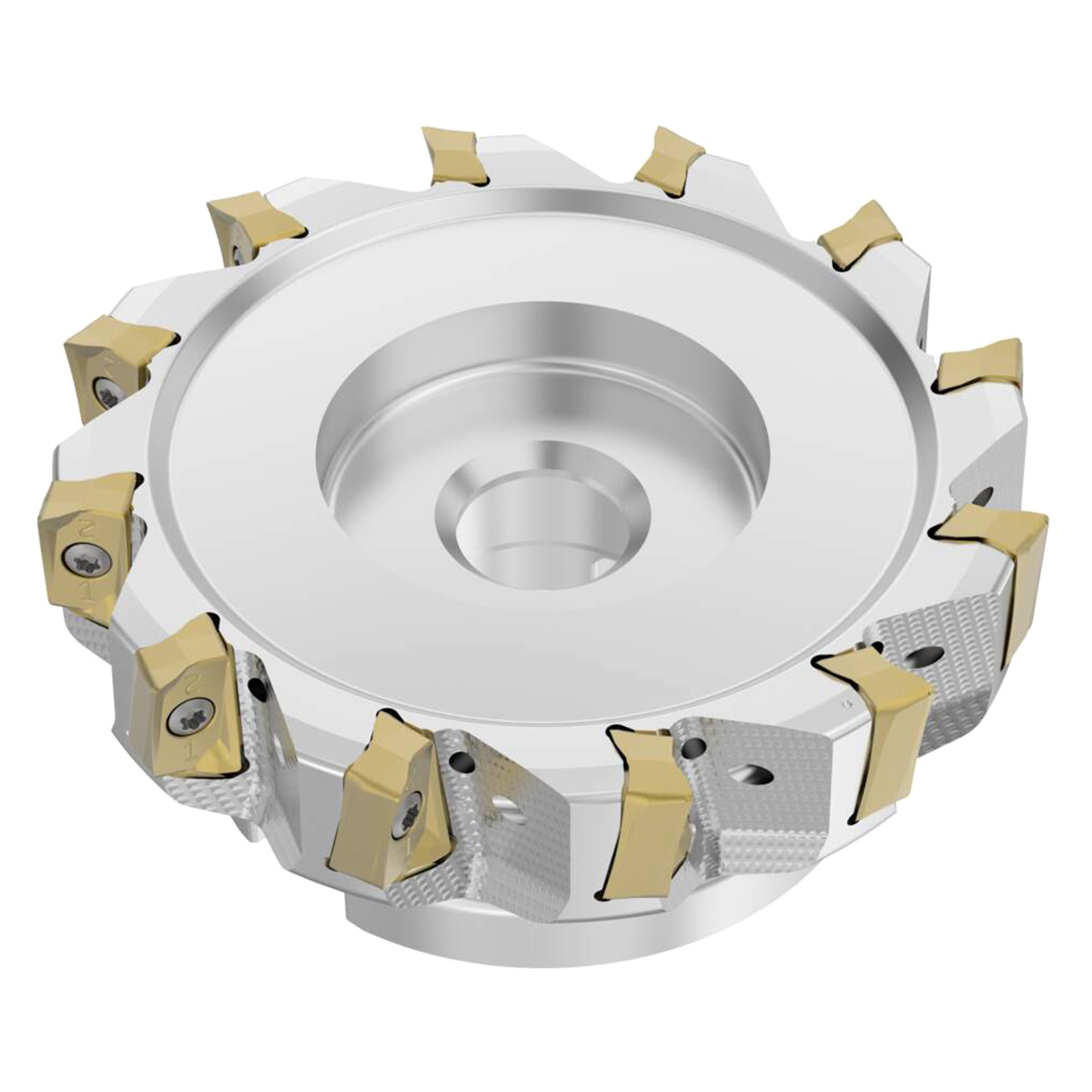

| Manufacturer Part Number | 03290259 |
| Cutting Diameter (Decimal Inch) | 5.000" |
| Cutting Diameter (mm) | 127.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.543" |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Depth of Key Way (Decimal Inch) | 0.354" |
| Depth of Key Way (mm) | 9.00mm |
| Keyway Width (Decimal Inch) | 0.646" |
| Keyway Width (mm) | 16.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -19.2 Degree |
| Rake Radial Angle (Degree) | -19.2 Degree |
| Rake Orthogonal Angle (Degree) | -19.2 Degree |
| Axial Rake Angle (Degree) | -1 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 5800 rpm |
| Shank Type | Arbor |
| Product Type | Indexable Square-Shoulder Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
5"
Cutting Diameter (Decimal Inch):
5.0000"
Cutting Diameter (mm):
127.00mm
Maximum Depth of Cut (Inch):
13/22"
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15.00mm
