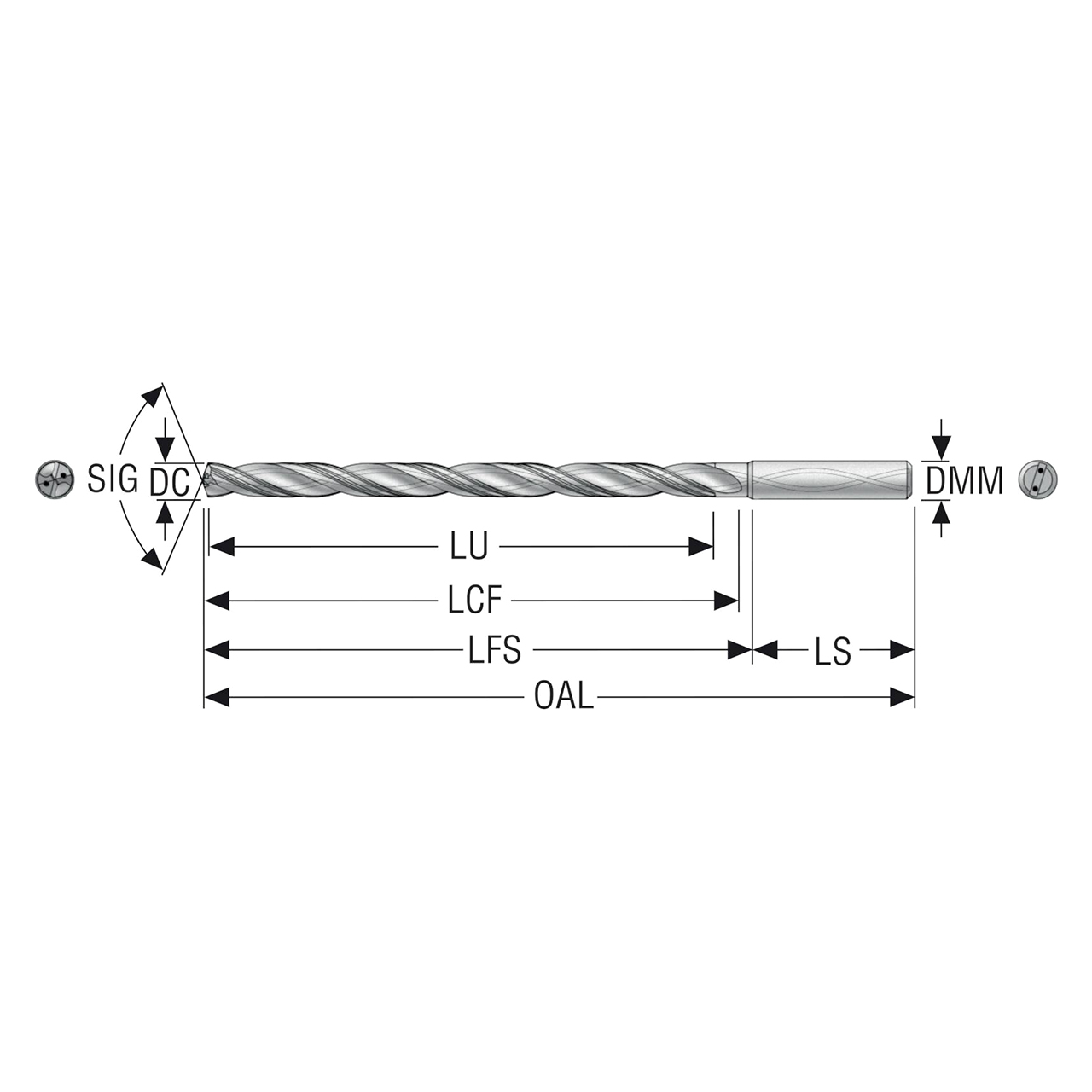

Product Specifications
| Manufacturer Part Number | 03295117 |
| Cutting Diameter (mm) | 6.10mm |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (mm) | 8.00mm |
| Chip Flute Length (mm) | 110.00mm |
| Functional Length Secondary (mm) | 112.00mm |
| Shank Length (mm) | 36.00mm |
| Usable Length (mm) | 98.00mm |
| Overall Length (mm) | 148.00mm |
| Point Length (mm) | 1.11mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |
| Product Type | Extra Long Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Overall Length (Inch):
5-43/52"
Overall Length (Decimal Inch):
5.8268"
Overall Length (mm):
148.00mm
Flute Length (Inch):
4-1/"
Flute Length (Decimal Inch):
4.3307"
Flute Length (mm):
110.00mm
Drill Point Angle:
140 Degree
Shank Type:
Cylindrical
interval quantity:
1
