Product Specifications

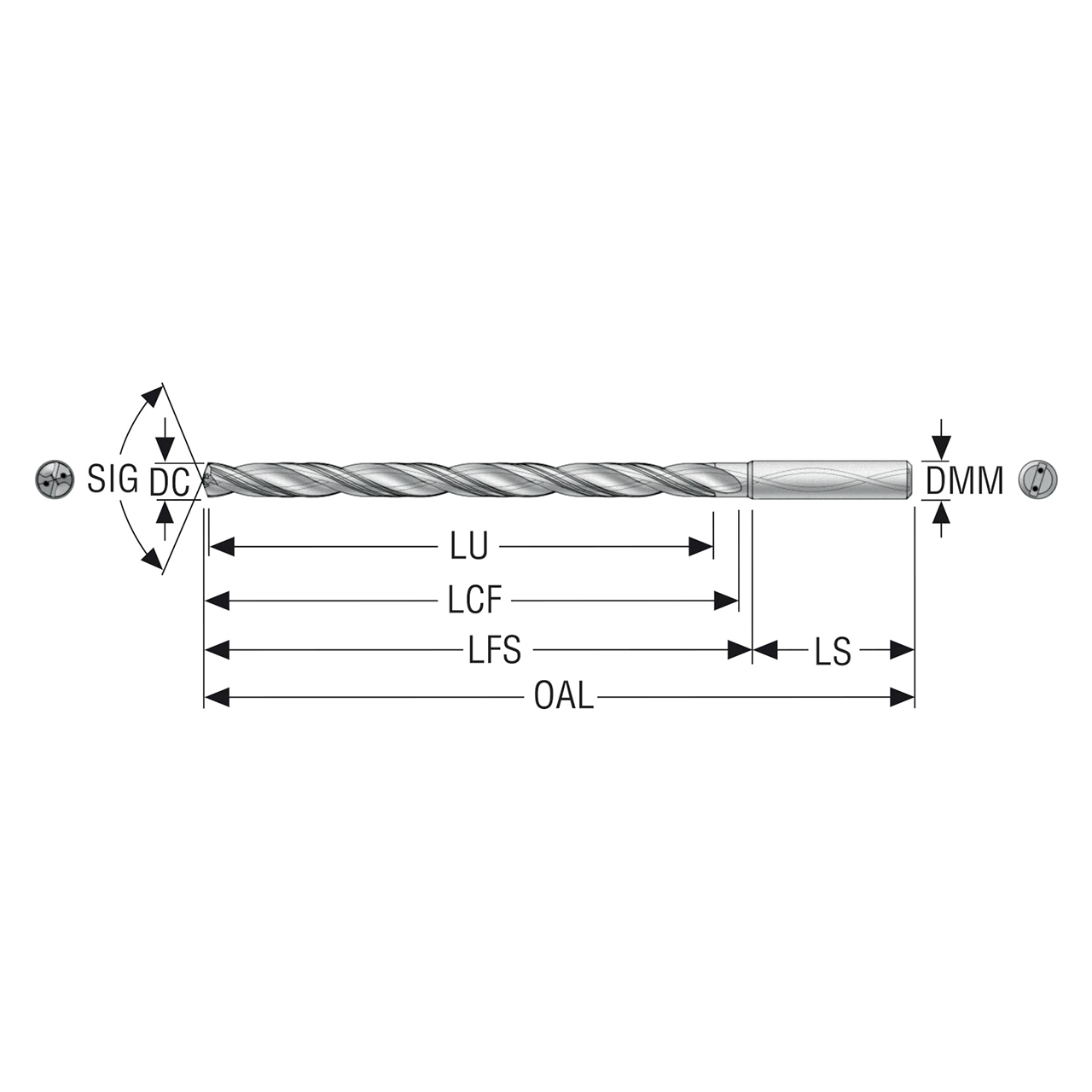

| Manufacturer Part Number | 03295161 |
| Cutting Diameter (mm) | 12.50mm |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Shank Diameter (mm) | 14.00mm |
| Chip Flute Length (mm) | 182.00mm |
| Functional Length Secondary (mm) | 185.00mm |
| Shank Length (mm) | 45.00mm |
| Usable Length (mm) | 168.00mm |
| Overall Length (mm) | 230.00mm |
| Point Length (mm) | 2.28mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

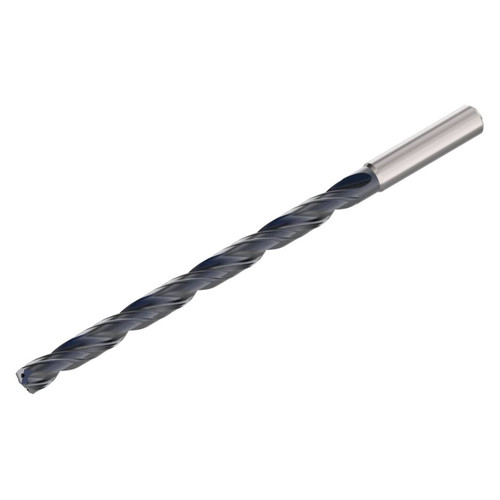

| Product Type | Extra Long Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Overall Length (Inch):
9-1/18"
Overall Length (Decimal Inch):
9.0551"
Overall Length (mm):
230.00mm
Flute Length (Inch):
7-1/"
Flute Length (Decimal Inch):
7.1654"
Flute Length (mm):
182.00mm
Drill Point Angle:
140 Degree
Shank Type:
Cylindrical
interval quantity:
1
