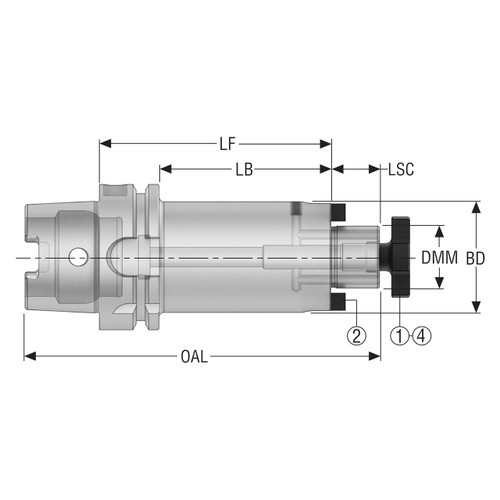

| Manufacturer Part Number | 03301553 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.866" |
| Connection Diameter Workpiece Side (mm) | 22.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Body Length (Decimal Inch) | 0.945" |
| Body Length (mm) | 24.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Clamping Length (Decimal Inch) | 0.748" |
| Clamping Length (mm) | 19.00mm |
| Overall Length (Decimal Inch) | 3.976" |
| Overall Length (mm) | 101.00mm |
| Data Chip Provision | 1 |
| Product Type | Shell Mill Holder |
