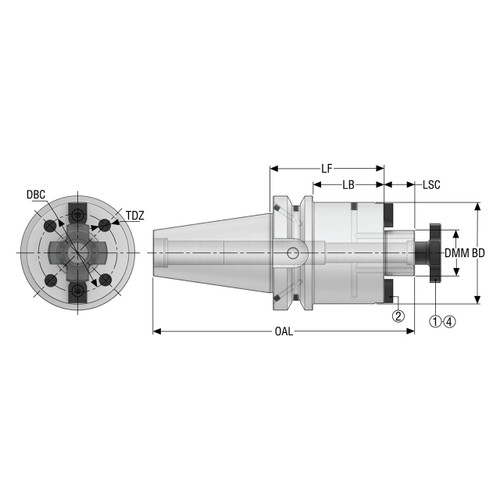

Product Specifications
| Manufacturer Part Number | 03301653 |
| Body Diameter (Decimal Inch) | 3.504" |
| Body Diameter (mm) | 89.00mm |
| Diameter Bolt Circle (Decimal Inch) | 2.626" |
| Diameter Bolt Circle (mm) | 66.70mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.575" |
| Connection Diameter Workpiece Side (mm) | 40.00mm |
| Shank Diameter (Decimal Inch) | 1.575" |
| Shank Diameter (mm) | 40.00mm |
| Thread Diameter Size | M12 |
| Body Length (Decimal Inch) | 0.906" |
| Body Length (mm) | 23.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Clamping Length (Decimal Inch) | 1.063" |
| Clamping Length (mm) | 27.00mm |
| Overall Length (Decimal Inch) | 5.606" |
| Overall Length (mm) | 142.40mm |
| Data Chip Provision | 1 |
| Product Type | Shell Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
