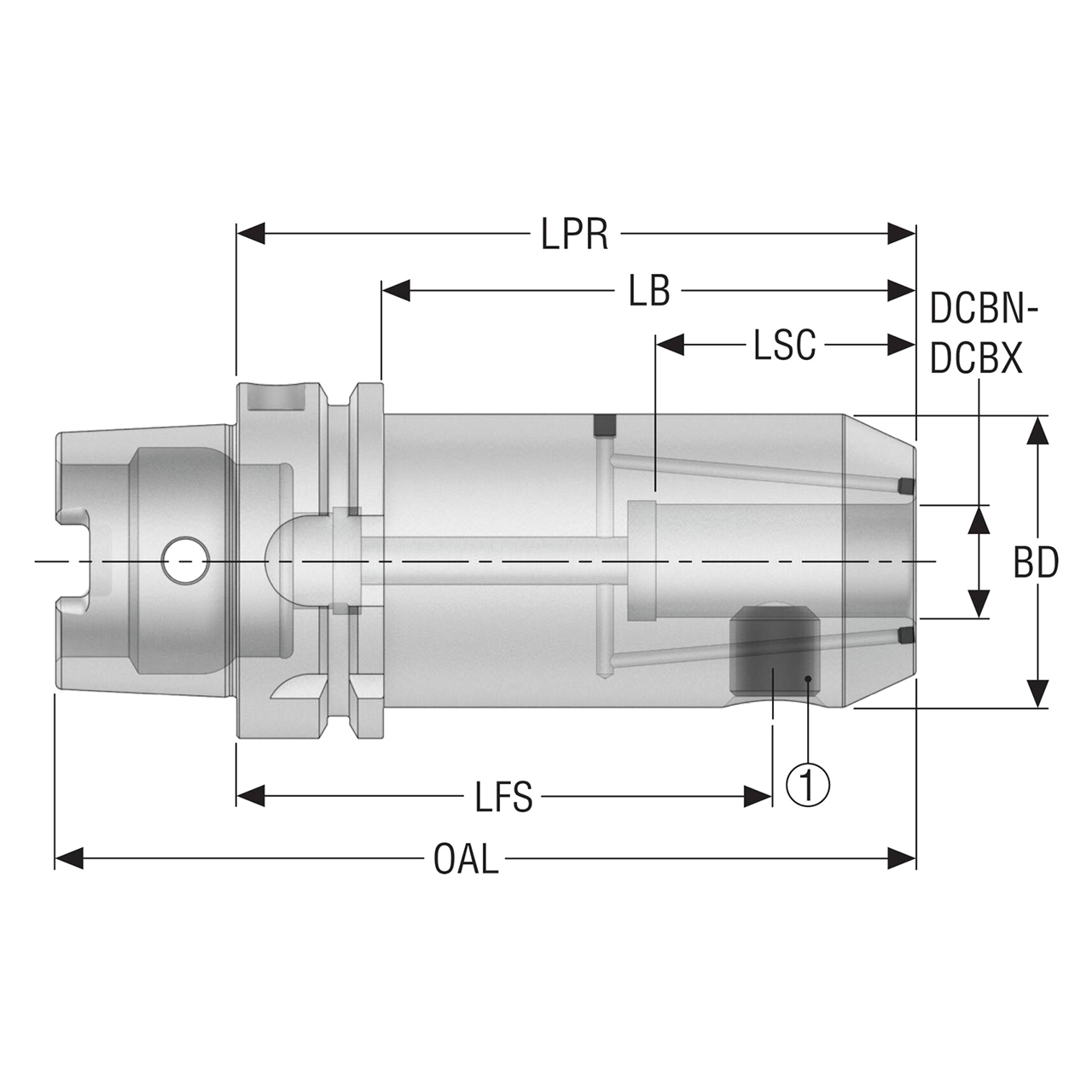

| Manufacturer Part Number | 03301700 |
| Body Diameter (Decimal Inch) | 2.047" |
| Body Diameter (mm) | 52.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Length (Decimal Inch) | 2.126" |
| Body Length (mm) | 54.00mm |
| Functional Length Secondary (Decimal Inch) | 2.165" |
| Functional Length Secondary (mm) | 55.00mm |
| Protruding Length (Decimal Inch) | 3.150" |
| Protruding Length (mm) | 80.00mm |
| Clamping Length (Decimal Inch) | 1.811" |
| Clamping Length (mm) | 46.00mm |
| Overall Length (Decimal Inch) | 4.409" |
| Overall Length (mm) | 112.00mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
