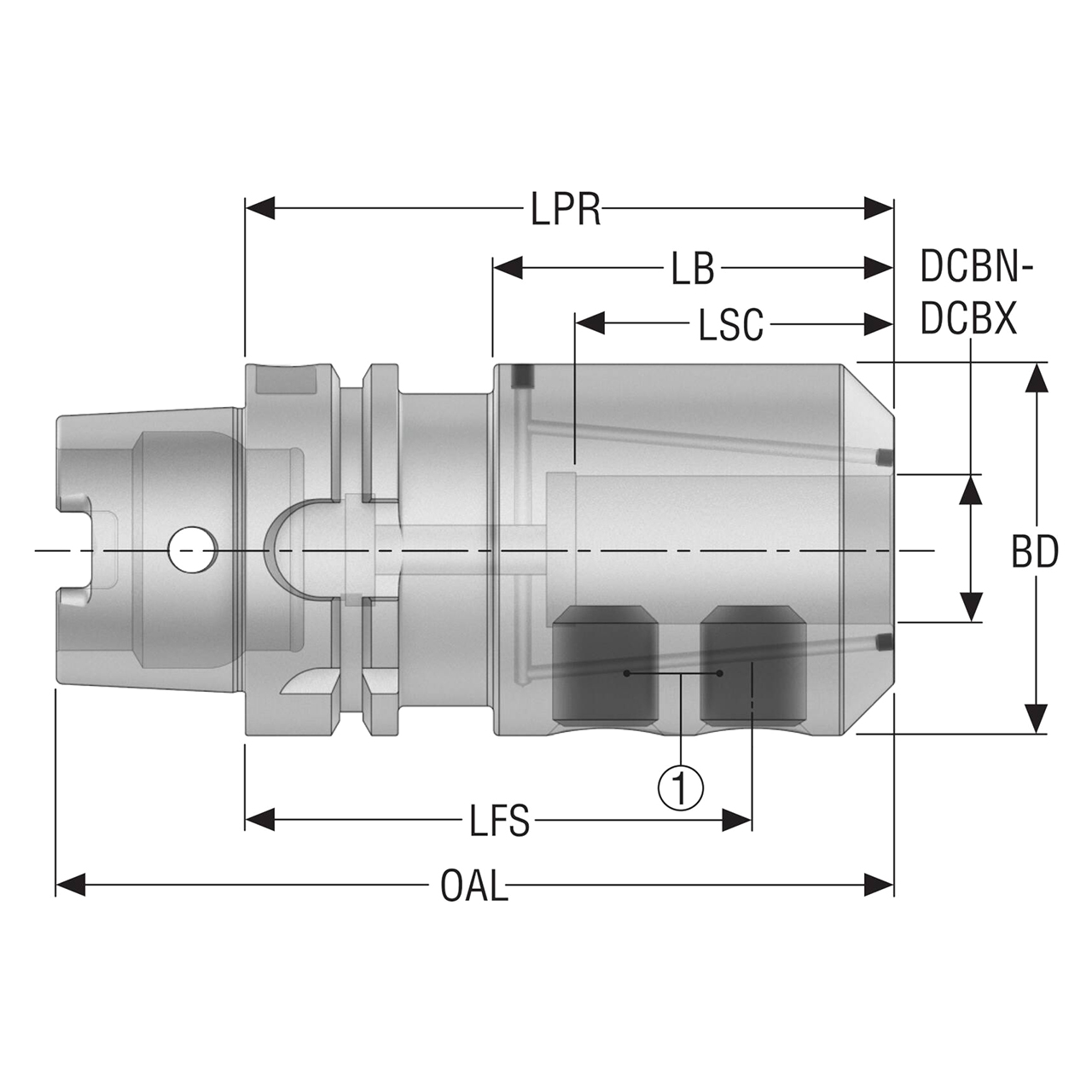

Product Specifications
| Manufacturer Part Number | 03301702 |
| Body Diameter (Decimal Inch) | 2.480" |
| Body Diameter (mm) | 63.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Body Length (Decimal Inch) | 2.677" |
| Body Length (mm) | 68.00mm |
| Functional Length Secondary (Decimal Inch) | 3.386" |
| Functional Length Secondary (mm) | 86.00mm |
| Protruding Length (Decimal Inch) | 4.331" |
| Protruding Length (mm) | 110.00mm |
| Clamping Length (Decimal Inch) | 2.126" |
| Clamping Length (mm) | 54.00mm |
| Overall Length (Decimal Inch) | 5.591" |
| Overall Length (mm) | 142.00mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
2-12/25"
Body Diameter (Decimal Inch):
2.4800"
Body Diameter (mm):
63.00mm
Overall Length (Inch):
5-13/22"
Overall Length (Decimal Inch):
5.5910"
Overall Length (mm):
142.00mm
interval quantity:
1
