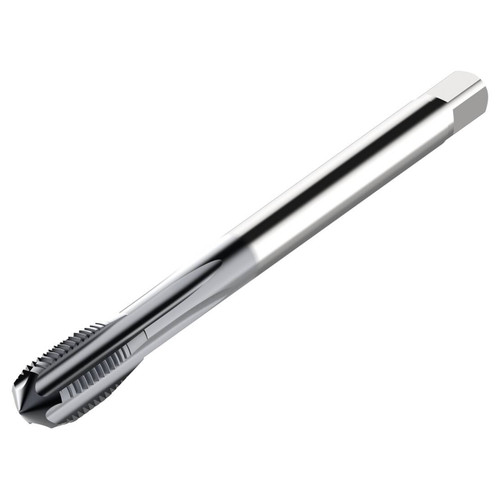

Seco Tools 03305470 | MTS-M14X1.50ISO6HX-XC-K111 MF14X1.5 Thread Size x 0.551" Diameter x 0.433" Shank x 3.937" OAL 5 Flute TIALN Coated HSS-E-PM Straight Flute Tap

$120.75
Brand:
Seco Tools
Thread Size:
MF14X1.5
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Number of Flutes:
5
Material:
HSS-E-PM
Finish/Coating:
TIALN
Thread Standard:
MF
interval quantity:
1
SKU:
17993672
Weight:
0.14 LBS
Shipping:
Free Shipping
Seco Tools 03305470 | MTS-M14X1.50ISO6HX-XC-K111 MF14X1.5 Thread Size x 0.551" Diameter x 0.433" Shank x 3.937" OAL 5 Flute TIALN Coated HSS-E-PM Straight Flute Tap

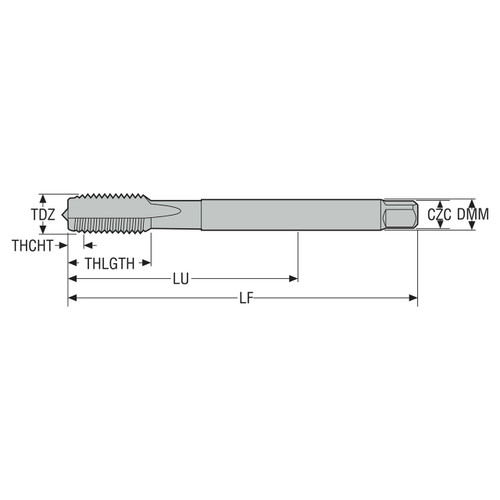

Product Specifications
Manufacturer Part Number03305470
Thread Diameter (Decimal Inch)0.551"
Thread Diameter (mm)14.00mm
Threading Chamfer Length (Decimal Inch)0.163"
Threading Chamfer Length (mm)4.13mm
Tap Chamfer Length (Decimal Inch)0.162"
Tap Chamfer Length (mm)4.13mm
Connection Diameter Machine Side (Decimal Inch)0.433"
Connection Diameter Machine Side (mm)11.00mm
Shank Diameter (Decimal Inch)0.433"
Shank Diameter (mm)11.00mm
Functional Length (Decimal Inch)3.775"
Functional Length (mm)95.88mm
Usable Length (Decimal Inch)2.795"
Usable Length (mm)71.00mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.827"
Thread Length (mm)21.00mm
Thread Diameter SizeMF14X1.5
Recommended Premachined Hole Diameter (Decimal Inch)0.492"
Recommended Premachined Hole Diameter (mm)12.50mm
Connection Size Code11.00X9.00
Connection Size Code Machine Side11.00X9.00
Maximum Premachined Hole Diameter (Decimal Inch)0.499"
Maximum Premachined Hole Diameter (mm)12.68mm
Minimum Thread Pitch (Decimal Inch)0.059"
Minimum Thread Pitch (mm)1.50mm
Maximum Thread Pitch (Decimal Inch)0.059"
Maximum Thread Pitch (mm)1.50mm
Number of Flute5
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeMF
Cutting DirectionRight Hand
Cutting Geometry TypeISO-K
Cutting Geometry Type TechnicalStraight
MaterialHSS-E-PM
CoatingTIALN
Product TypeStraight Flute Tap
