Product Specifications

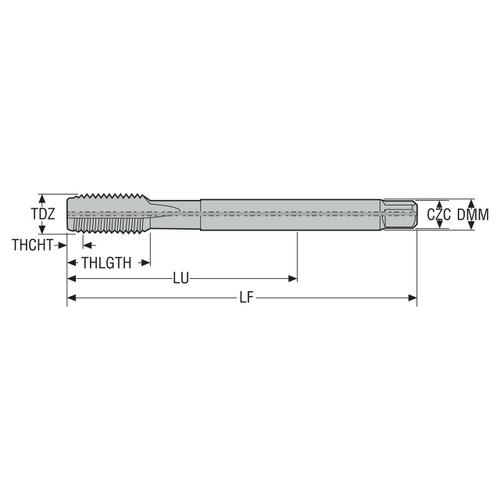

| Manufacturer Part Number | 03305478 |
| Thread Diameter (Decimal Inch) | 1.041" |
| Thread Diameter (mm) | 26.44mm |
| Threading Chamfer Length (Decimal Inch) | 0.197" |
| Threading Chamfer Length (mm) | 4.99mm |
| Tap Chamfer Length (Decimal Inch) | 0.196" |
| Tap Chamfer Length (mm) | 4.99mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.787" |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (Decimal Inch) | 5.315" |
| Functional Length (mm) | 135.01mm |
| Usable Length (Decimal Inch) | 3.032" |
| Usable Length (mm) | 77.00mm |
| Overall Length (Decimal Inch) | 5.512" |
| Overall Length (mm) | 140.00mm |
| Thread Length (Decimal Inch) | 0.827" |
| Thread Length (mm) | 21.00mm |
| Thread Diameter Size | G3/4-14 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.965" |
| Recommended Premachined Hole Diameter (mm) | 24.50mm |
| Connection Size Code | 20.00X16.00 |
| Connection Size Code Machine Side | 20.00X16.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.971" |
| Maximum Premachined Hole Diameter (mm) | 24.66mm |
| Minimum Threads Per Inch (mm) | 14.00mm |
| Maximum Threads Per Inch (mm) | 14.00mm |
| Number of Flute | 6 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal-X |
| Threading Chamfer Type | C |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-K |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E-PM |
| Coating | TIALN |
| Product Type | British Standard Pipe Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Number of Flutes:
6
Material:
HSS-E-PM
Finish/Coating:
TiAlN
Overall Length (Inch):
5-33/64"
Overall Length (Decimal Inch):
5.5120"
Overall Length (mm):
140.00mm
