Seco Tools 03305485 | MTS-5/8-11UNC-XC-K131 UNC5/8-11 Thread Size x 0.625" Diameter x 0.472" Shank x 4.331" OAL 5 Flute TIALN Coated HSS-E-PM Straight Flute Tap

$215.00 $148.35
(You save $66.65)
Brand:
Seco Tools
Thread Size:
UNC5/8-11
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.00mm
Number of Flutes:
5
Material:
HSS-E-PM
Finish/Coating:
TIALN
Thread Standard:
UNC
interval quantity:
1
SKU:
17993687
UPC:
Weight:
0.19 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03305485 | MTS-5/8-11UNC-XC-K131 UNC5/8-11 Thread Size x 0.625" Diameter x 0.472" Shank x 4.331" OAL 5 Flute TIALN Coated HSS-E-PM Straight Flute Tap

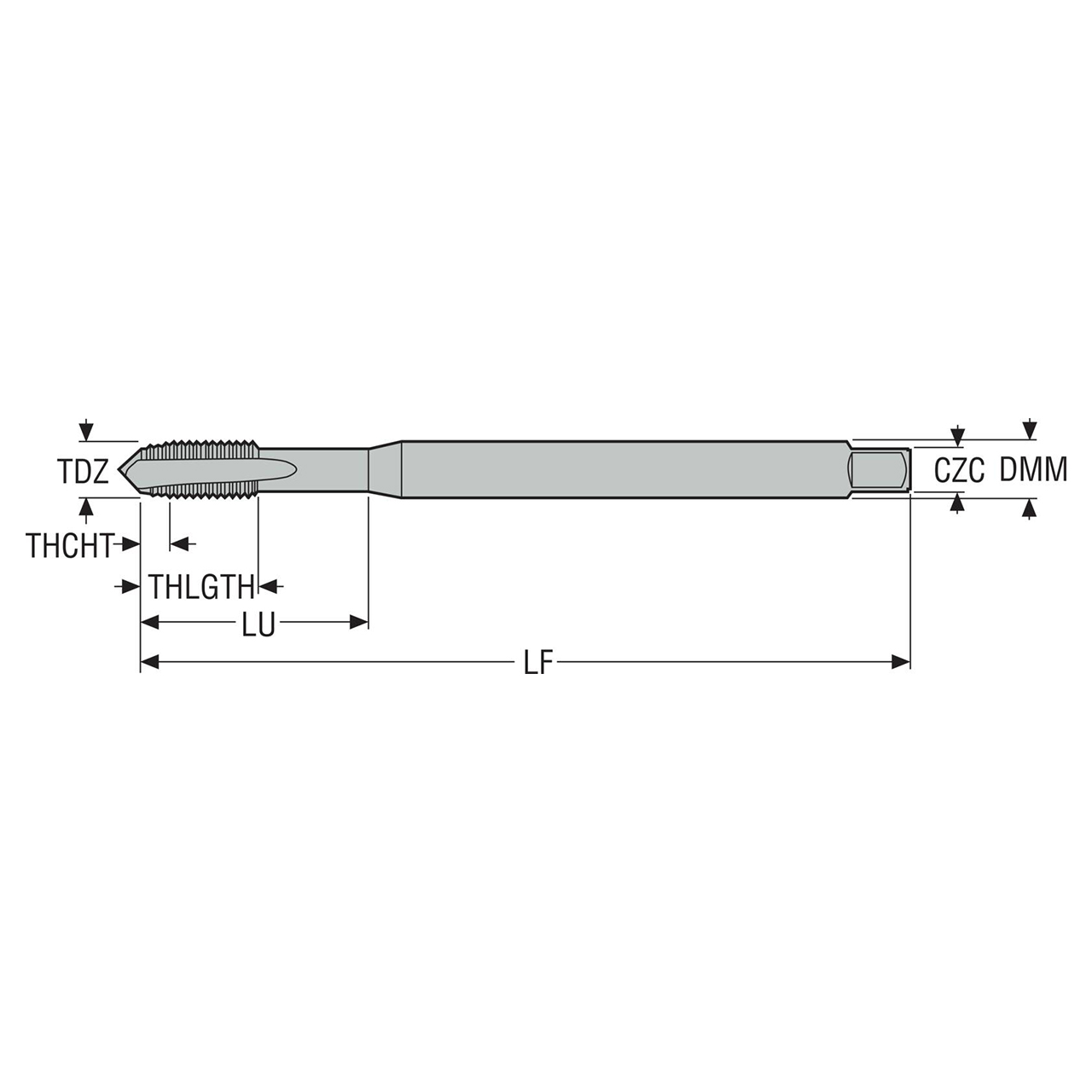

Product Specifications
Manufacturer Part Number03305485
Thread Diameter (Decimal Inch)0.625"
Thread Diameter (mm)15.88mm
Threading Chamfer Length (Decimal Inch)0.250"
Threading Chamfer Length (mm)6.35mm
Tap Chamfer Length (Decimal Inch)0.250"
Tap Chamfer Length (mm)6.35mm
Connection Diameter Machine Side (Decimal Inch)0.472"
Connection Diameter Machine Side (mm)12.00mm
Shank Diameter (Decimal Inch)0.472"
Shank Diameter (mm)12.00mm
Functional Length (Decimal Inch)4.081"
Functional Length (mm)103.65mm
Usable Length (Decimal Inch)2.587"
Usable Length (mm)65.70mm
Overall Length (Decimal Inch)4.331"
Overall Length (mm)110.00mm
Thread Length (Decimal Inch)0.906"
Thread Length (mm)23.00mm
Thread Diameter SizeUNC5/8-11
Recommended Premachined Hole Diameter (Decimal Inch)0.532"
Recommended Premachined Hole Diameter (mm)13.50mm
Connection Size Code12.25X9.00
Connection Size Code Machine Side12.25X9.00
Maximum Premachined Hole Diameter (Decimal Inch)0.546"
Maximum Premachined Hole Diameter (mm)13.87mm
Minimum Threads Per Inch (mm)11.00mm
Maximum Threads Per Inch (mm)11.00mm
Number of Flute5
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeC
Thread Form TypeUNC
Cutting DirectionRight Hand
Cutting Geometry TypeISO-K
Cutting Geometry Type TechnicalStraight
MaterialHSS-E-PM
CoatingTIALN
Product TypeStraight Flute Tap
