Product Specifications

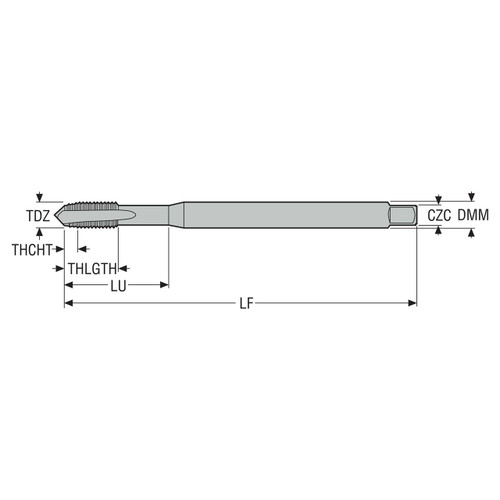

| Manufacturer Part Number | 03305494 |
| Thread Diameter (Decimal Inch) | 0.625" |
| Thread Diameter (mm) | 15.88mm |
| Threading Chamfer Length (Decimal Inch) | 0.097" |
| Threading Chamfer Length (mm) | 2.47mm |
| Tap Chamfer Length (Decimal Inch) | 0.153" |
| Tap Chamfer Length (mm) | 3.88mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.472" |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Functional Length (Decimal Inch) | 4.178" |
| Functional Length (mm) | 106.12mm |
| Usable Length (Decimal Inch) | 2.193" |
| Usable Length (mm) | 55.70mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.906" |
| Thread Length (mm) | 23.00mm |
| Thread Diameter Size | UNF5/8-18 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.571" |
| Recommended Premachined Hole Diameter (mm) | 14.50mm |
| Connection Size Code | 12.25X9.00 |
| Connection Size Code Machine Side | 12.25X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.546" |
| Maximum Premachined Hole Diameter (mm) | 13.87mm |
| Minimum Threads Per Inch (mm) | 18.00mm |
| Maximum Threads Per Inch (mm) | 18.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-K |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E-PM |
| Coating | TIALN |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.00mm
Number of Flutes:
5
Material:
HSS-E-PM
Finish/Coating:
TIALN
Thread Standard:
UNF
interval quantity:
1
