Product Specifications

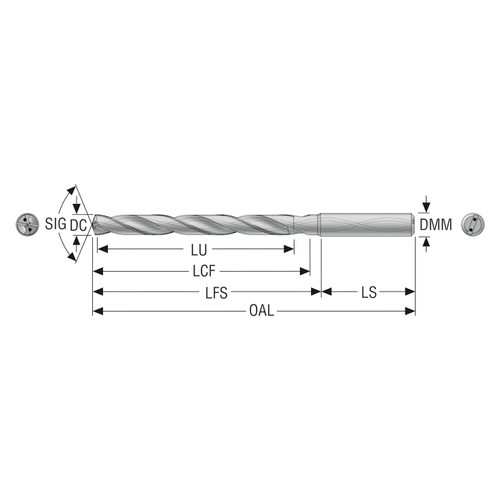

| Manufacturer Part Number | 03323702 |
| Cutting Diameter (Decimal Inch) | 0.531" |
| Cutting Diameter (mm) | 13.49mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.551" |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.551" |
| Shank Diameter (mm) | 14.00mm |
| Chip Flute Length (Decimal Inch) | 5.236" |
| Chip Flute Length (mm) | 133.00mm |
| Functional Length Secondary (Decimal Inch) | 5.394" |
| Functional Length Secondary (mm) | 137.00mm |
| Shank Length (Decimal Inch) | 1.772" |
| Shank Length (mm) | 45.00mm |
| Usable Length (Decimal Inch) | 4.685" |
| Usable Length (mm) | 119.00mm |
| Overall Length (Decimal Inch) | 7.165" |
| Overall Length (mm) | 182.00mm |
| Point Length (Decimal Inch) | 0.096" |
| Point Length (mm) | 2.44mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |
| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Type:
Cylindrical
Flute Length (Inch):
5-15/64"
Flute Length (Decimal Inch):
5.2400"
Flute Length (mm):
133.00mm
Overall Length (Inch):
7-11/64"
Overall Length (Decimal Inch):
7.1700"
Overall Length (mm):
182.00mm
Drill Point Angle:
140 Degree
Material:
Carbide
interval quantity:
