Product Specifications

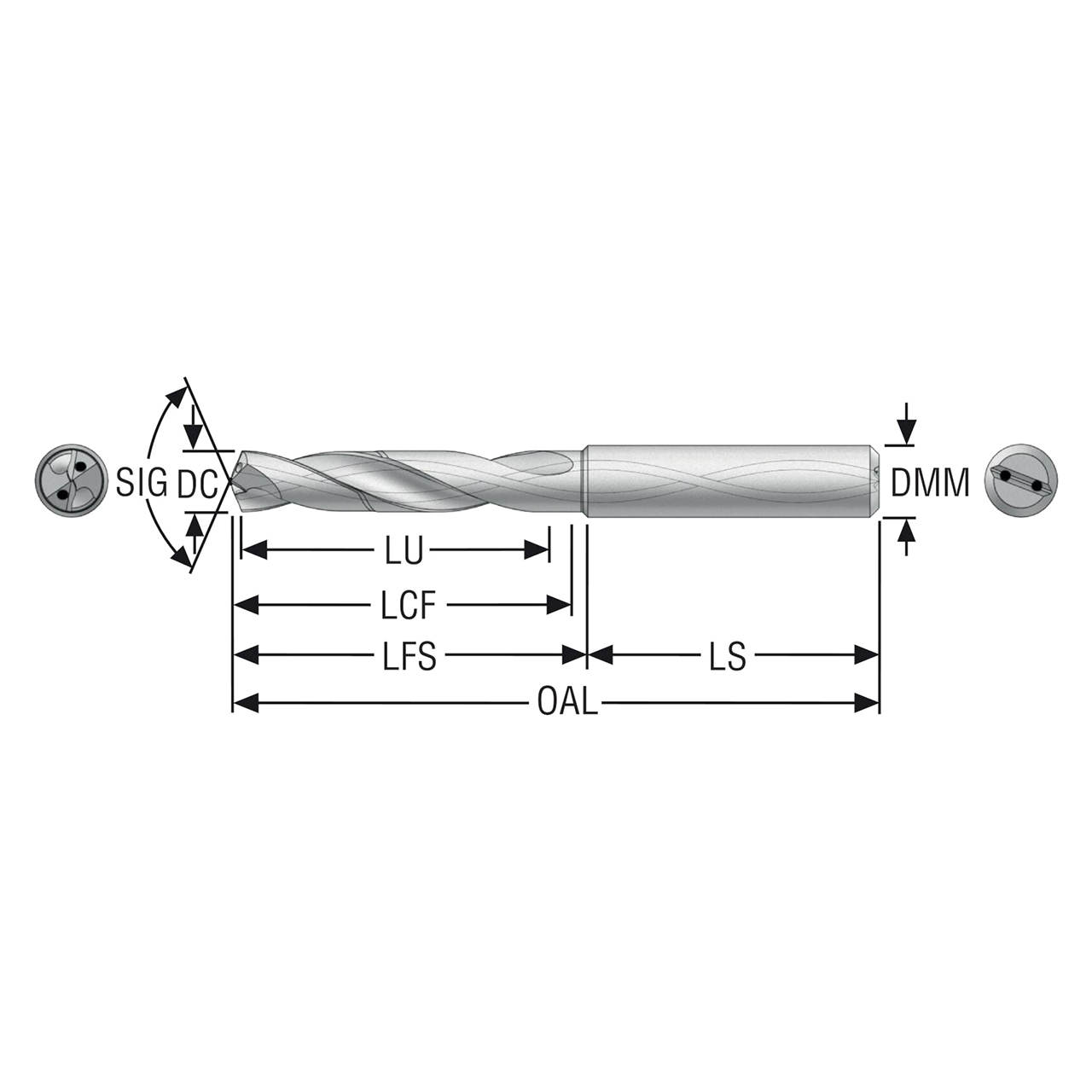

| Manufacturer Part Number | 10004130 |
| Cutting Diameter (Decimal Inch) | 0.281" |
| Cutting Diameter (mm) | 7.14mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Chip Flute Length (Decimal Inch) | 1.614" |
| Chip Flute Length (mm) | 41.00mm |
| Functional Length Secondary (Decimal Inch) | 1.693" |
| Functional Length Secondary (mm) | 43.00mm |
| Shank Length (Decimal Inch) | 1.417" |
| Shank Length (mm) | 36.00mm |
| Usable Length (Decimal Inch) | 0.984" |
| Usable Length (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 3.110" |
| Overall Length (mm) | 79.00mm |
| Point Length (Decimal Inch) | 0.068" |
| Point Length (mm) | 1.73mm |
| Corner Chamfer Width (Decimal Inch) | 0.003" |
| Corner Chamfer Width (mm) | 0.08mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Corner Chamfer Angle (Degree) | 35 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Cutting Geometry Type | MS |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |
| Product Type | Screw Machine Length Drill Bit |
