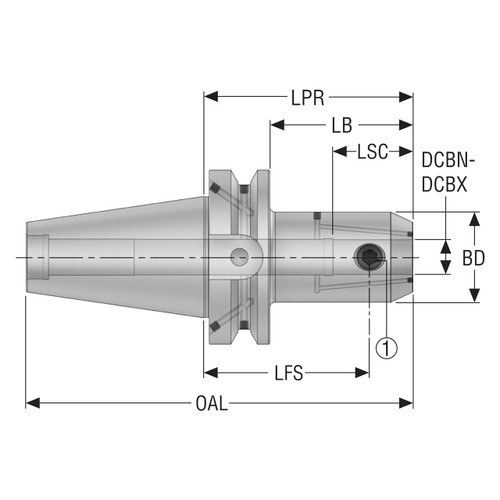

| Manufacturer Part Number | 10007246 |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.709" |
| Minimum Connection Bore Diameter (mm) | 18.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.709" |
| Maximum Connection Bore Diameter (mm) | 18.00mm |
| Body Length (Decimal Inch) | 1.728" |
| Body Length (mm) | 43.90mm |
| Functional Length Secondary (Decimal Inch) | 1.535" |
| Functional Length Secondary (mm) | 39.00mm |
| Protruding Length (Decimal Inch) | 2.480" |
| Protruding Length (mm) | 63.00mm |
| Clamping Length (Decimal Inch) | 1.732" |
| Clamping Length (mm) | 44.00mm |
| Overall Length (Decimal Inch) | 5.173" |
| Overall Length (mm) | 131.40mm |
| Data Chip Provision | 1 |

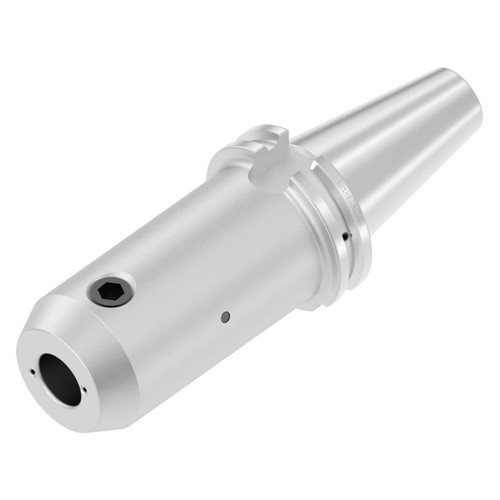

| Product Type | End Mill Holder |
