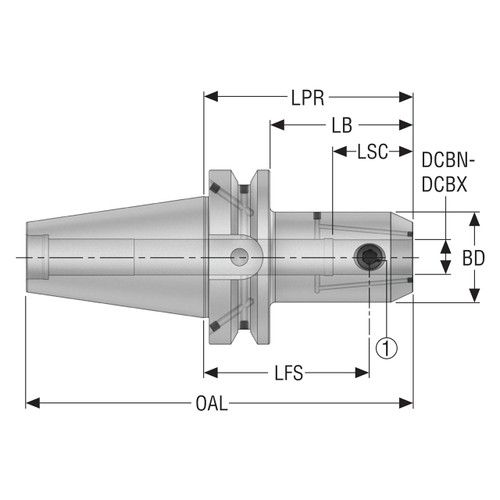

| Manufacturer Part Number | 10007249 |
| Body Diameter (Decimal Inch) | 2.047" |
| Body Diameter (mm) | 52.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Length (Decimal Inch) | 3.972" |
| Body Length (mm) | 100.90mm |
| Functional Length Secondary (Decimal Inch) | 3.740" |
| Functional Length Secondary (mm) | 95.00mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Clamping Length (Decimal Inch) | 1.811" |
| Clamping Length (mm) | 46.00mm |
| Overall Length (Decimal Inch) | 7.417" |
| Overall Length (mm) | 188.40mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
