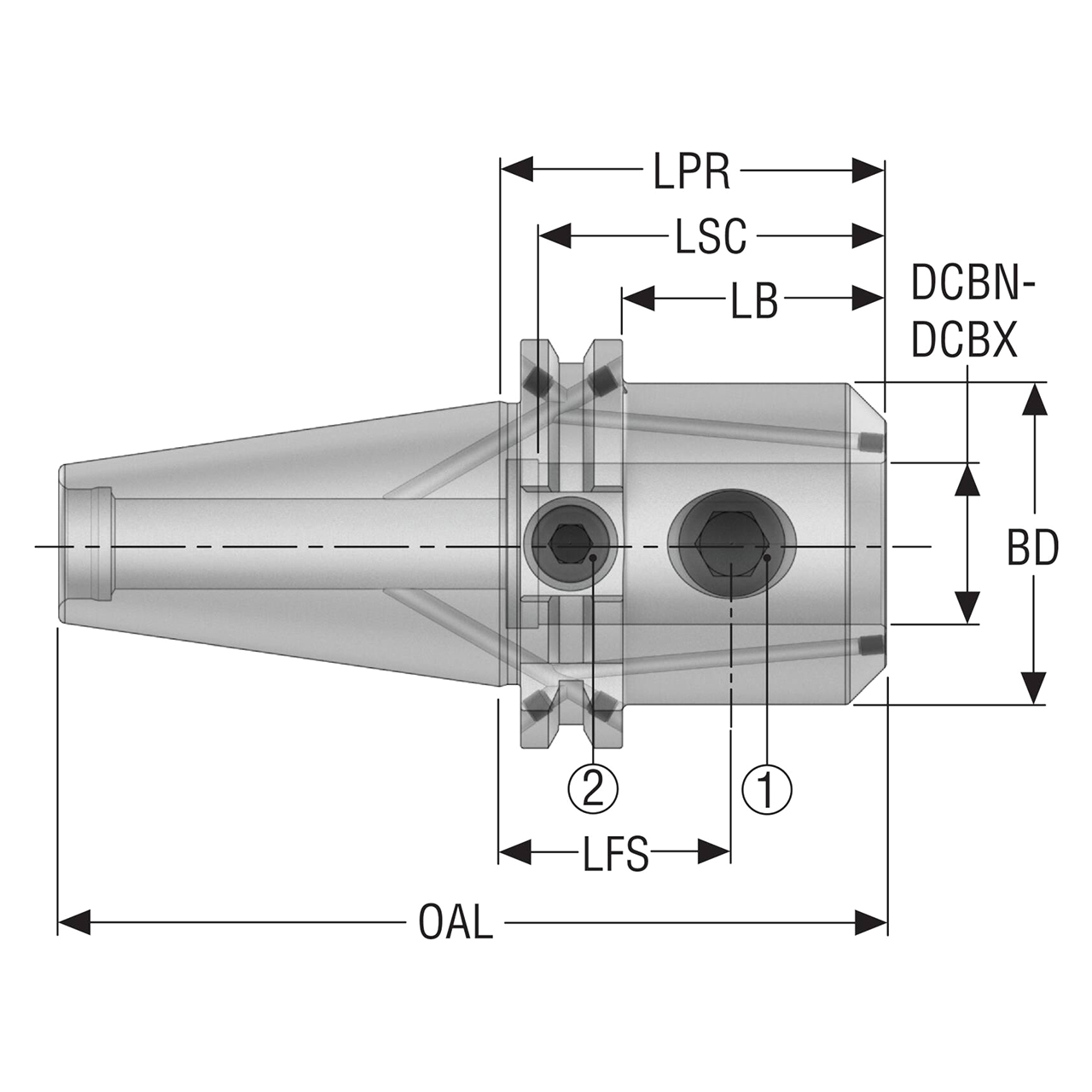

| Manufacturer Part Number | 10007250 |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Thread Diameter Size 1 | M18x2 |
| Thread Diameter Size 2 | M14 |
| Body Length (Decimal Inch) | 1.610" |
| Body Length (mm) | 40.90mm |
| Functional Length Secondary (Decimal Inch) | 1.417" |
| Functional Length Secondary (mm) | 36.00mm |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Clamping Length (Decimal Inch) | 2.126" |
| Clamping Length (mm) | 54.00mm |
| Overall Length (Decimal Inch) | 5.055" |
| Overall Length (mm) | 128.40mm |
| Data Chip Provision | 1 |

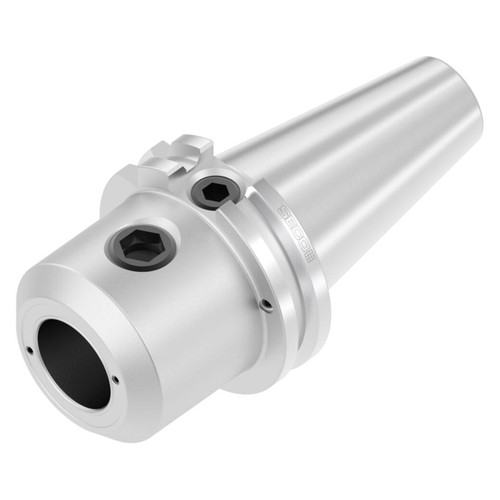

| Product Type | End Mill Holder |
