Seco Tools 10007252 | DIN40ADB-EM32-075-F5L1 72.00mm Diameter x 143.40mm OAL End Mill Holder

$231.00 $159.39
(You save $71.61)
Brand:
Seco Tools
interval quantity:
1
SKU:
55076070
UPC:
Weight:
3.67 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10007252 | DIN40ADB-EM32-075-F5L1 72.00mm Diameter x 143.40mm OAL End Mill Holder

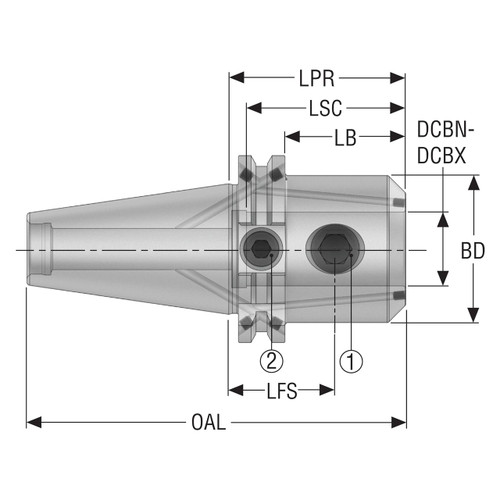

Product Specifications
Manufacturer Part Number10007252
Body Diameter (Decimal Inch)2.835"
Body Diameter (mm)72.00mm
Minimum Connection Bore Diameter (Decimal Inch)1.260"
Minimum Connection Bore Diameter (mm)32.00mm
Maximum Connection Bore Diameter (Decimal Inch)1.260"
Maximum Connection Bore Diameter (mm)32.00mm
Thread Diameter Size 1M20x2
Thread Diameter Size 2M14
Body Length (Decimal Inch)2.201"
Body Length (mm)55.90mm
Functional Length Secondary (Decimal Inch)2.008"
Functional Length Secondary (mm)51.00mm
Protruding Length (Decimal Inch)2.953"
Protruding Length (mm)75.00mm
Clamping Length (Decimal Inch)2.284"
Clamping Length (mm)58.00mm
Overall Length (Decimal Inch)5.646"
Overall Length (mm)143.40mm
Data Chip Provision1
Product TypeEnd Mill Holder

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
