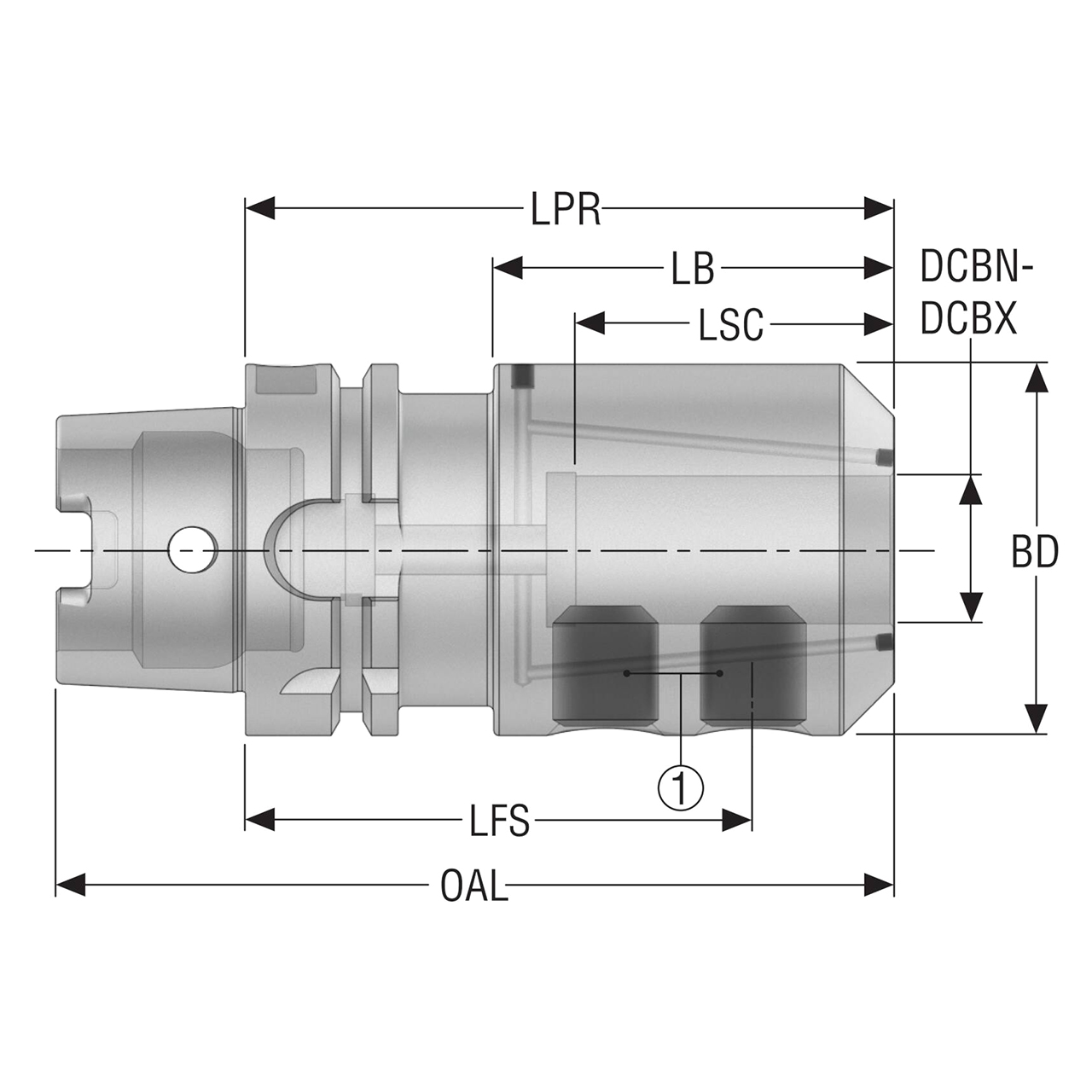

Product Specifications
| Manufacturer Part Number | 10007273 |
| Body Diameter (Decimal Inch) | 2.835" |
| Body Diameter (mm) | 72.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Minimum Connection Bore Diameter (mm) | 32.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Maximum Connection Bore Diameter (mm) | 32.00mm |
| Body Length (Decimal Inch) | 2.795" |
| Body Length (mm) | 71.00mm |
| Functional Length Secondary (Decimal Inch) | 2.992" |
| Functional Length Secondary (mm) | 76.00mm |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Clamping Length (Decimal Inch) | 2.284" |
| Clamping Length (mm) | 58.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Decimal Inch):
2.8350"
Body Diameter (mm):
72.00mm
Overall Length (Inch):
5-29/32"
Overall Length (Decimal Inch):
5.9060"
Overall Length (mm):
150.00mm
interval quantity:
1
