Product Specifications
| Manufacturer Part Number | 10068162 |
| Cutting Diameter (Decimal Inch) | 2.095" |
| Cutting Diameter (mm) | 53.20mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.289" |
| Contact Surface Diameter Machine Side (mm) | 58.15mm |
| Maximum Cutting Diameter (Decimal Inch) | 3.000" |
| Maximum Cutting Diameter (mm) | 76.20mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 5.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 150.40mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 4.583" |
| Minimum Helical Interpolation Hole Diameter (mm) | 116.40mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Maximum Depth of Cut (Decimal Inch) | 0.071" |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Programming Radius (Decimal Inch) | 0.158" |
| Programming Radius (mm) | 4.02mm |
| Uncut Thickness (Decimal Inch) | 0.0555 |
| Uncut Thickness (mm) | 1.41 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 11 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 11 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 11 Degree |
| Maximum Ramping Angle (Degree) | 1.7 Degree |
| Maximum Rotational Speed (rpm) | 8500 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

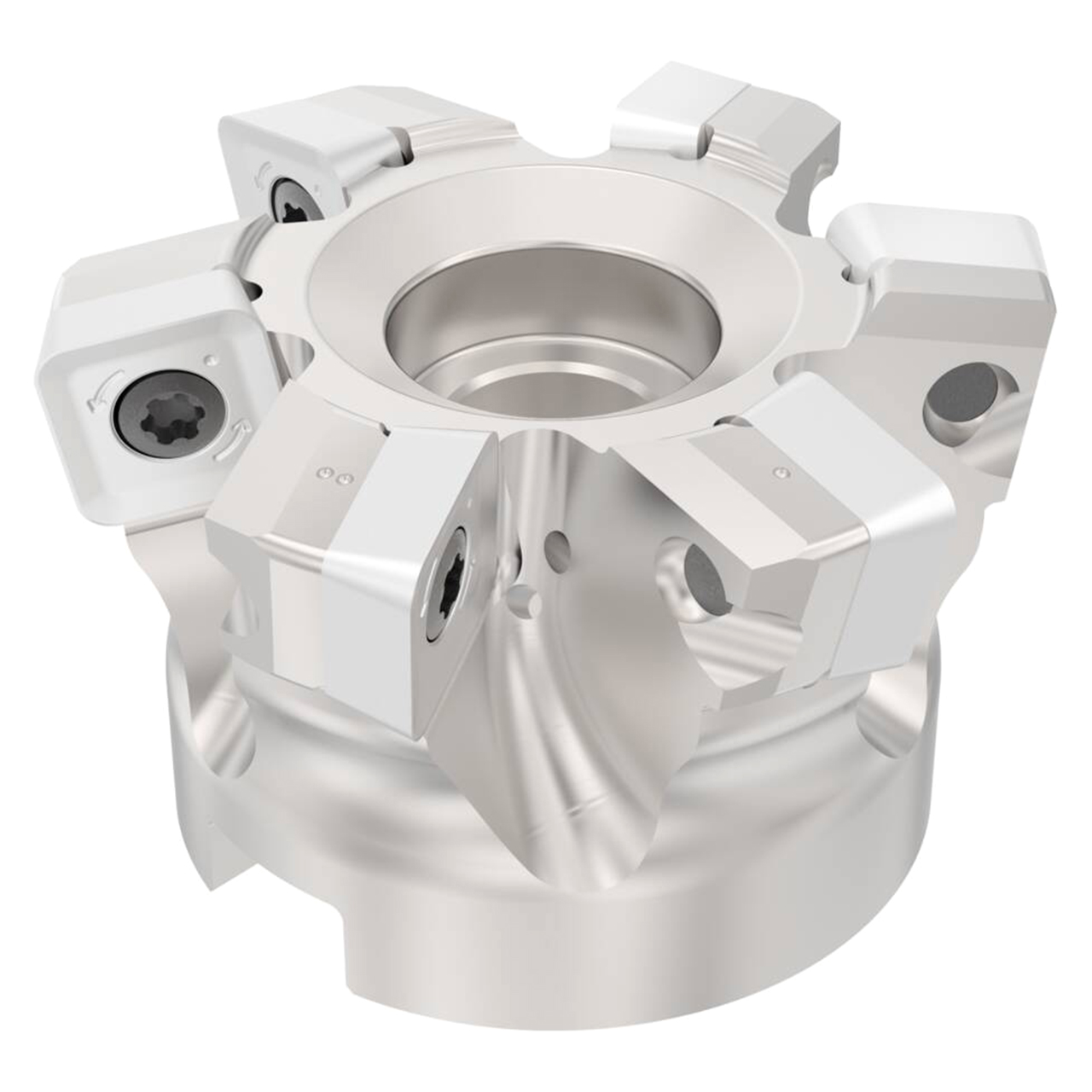

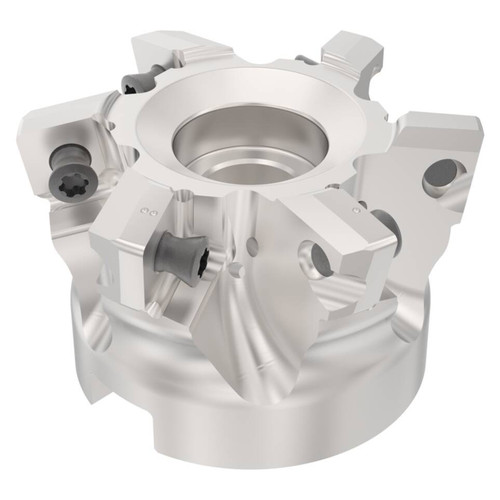

| Product Type | Indexable High-Feed End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-7/74"
Cutting Diameter (Decimal Inch):
2.0945"
Cutting Diameter (mm):
53.20mm
Maximum Depth of Cut (Inch):
1/14"
Maximum Depth of Cut (Decimal Inch):
0.0709"
Maximum Depth of Cut (mm):
1.80mm
Shank Type:
Arbor
