Seco Tools 10070635 |DCMT11T304-F1 0.375" Inscribed Circle Diameter x 0.016" Corner Radius x 0.156" Thickness 2 Cutting Edge Carbide Turning Insert

$18.90 $13.99
(You save $4.91)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.97mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.40mm
interval quantity:
10
SKU:
23288907
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 10070635 |DCMT11T304-F1 0.375" Inscribed Circle Diameter x 0.016" Corner Radius x 0.156" Thickness 2 Cutting Edge Carbide Turning Insert

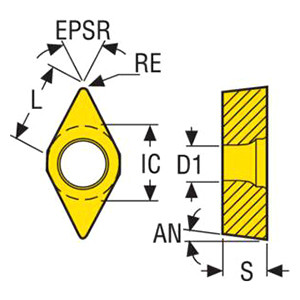

Product Specifications
Manufacturer Part Number10070635
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Inscribed Circle Diameter (Decimal Inch)0.375"
Inscribed Circle Diameter (mm)9.53mm
Cutting Edge Effective Length (Decimal Inch)0.445"
Cutting Edge Effective Length (mm)11.30mm
Theoretical Cutting Edge Length (Decimal Inch)0.457"
Theoretical Cutting Edge Length (mm)11.60mm
Corner Radius (Decimal Inch)0.016"
Corner Radius (mm)0.40mm
Insert Thickness (Decimal Inch)0.156"
Insert Thickness (mm)3.97mm
Cutting Edge Count2
Clearance Angle Major (Degree)7 Degree
Insert Included Angle (Degree)55 Degree
Insert HandNeutral
Insert Size And ShapeDC11T3
Insert Shape CodeD
MaterialCarbide
Product TypeTurning Insert
