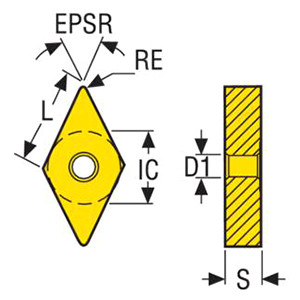

| Manufacturer Part Number | 10070640 |
| Fixing Hole Diameter (Decimal Inch) | 0.203" |
| Fixing Hole Diameter (mm) | 5.15mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.563" |
| Cutting Edge Effective Length (mm) | 14.30mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.610" |
| Theoretical Cutting Edge Length (mm) | 15.50mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 4 |
| Insert Included Angle (Degree) | 55 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | DN1506 |
| Insert Shape Code | D |
| Material | Carbide |
| Product Type | Turning Insert |
