| Manufacturer Part Number | 10092425 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 14.00mm |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | No |
| Cutting Diameter (mm) | 160.00mm |
| Connection Diameter Machine Side (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 55.00mm |
| Cutting Direction | Neutral |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Rotational Speed Maximum | 6800 rpm |
| Shank Type | Arbor hole |
| Peripheral Effective Cutting Edge Count | 7 |
| Product Series | 335.18 |

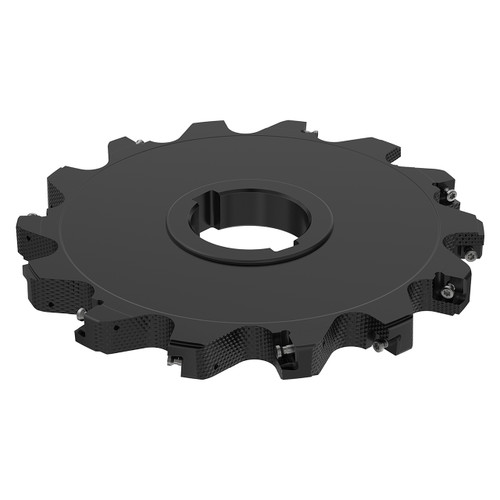

| Product Type | Indexable Slotting Cutter |
