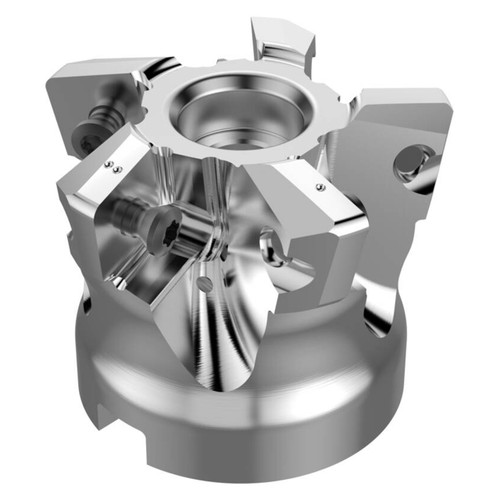

Product Specifications
| Manufacturer Part Number | 10097580 |
| Cutting Diameter (mm) | 36.70mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 61.00mm |
| Maximum Cutting Diameter (mm) | 66.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 130.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 102.70mm |
| Functional Length (mm) | 55.00mm |
| Maximum Depth of Cut (mm) | 2.50mm |
| Depth of Key Way (mm) | 7.00mm |
| Keyway Width (mm) | 12.40mm |
| Programming Radius (mm) | 5.40mm |
| Uncut Thickness (mm) | 1.9 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4.5 Degree |
| Rake Radial Angle (Degree) | -4.5 Degree |
| Rake Orthogonal Angle (Degree) | -4.5 Degree |
| Axial Rake Angle (Degree) | 4.5 Degree |
| Tool Cutting Edge Angle (Degree) | 12 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 12 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 12 Degree |
| Maximum Ramping Angle (Degree) | 3.4 Degree |
| Maximum Rotational Speed (rpm) | 5700 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |
| Product Type | Indexable High-Feed End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-4/9"
Cutting Diameter (Decimal Inch):
1.4449"
Cutting Diameter (mm):
36.70mm
Maximum Depth of Cut (Inch):
6/61"
Maximum Depth of Cut (Decimal Inch):
0.0984"
Maximum Depth of Cut (mm):
2.50mm
Shank Type:
Arbor
interval quantity:
1
