| Manufacturer Part Number | 10098025 |
| Fixing Hole Diameter (Decimal Inch) | 0.161" |
| Fixing Hole Diameter (mm) | 4.10mm |

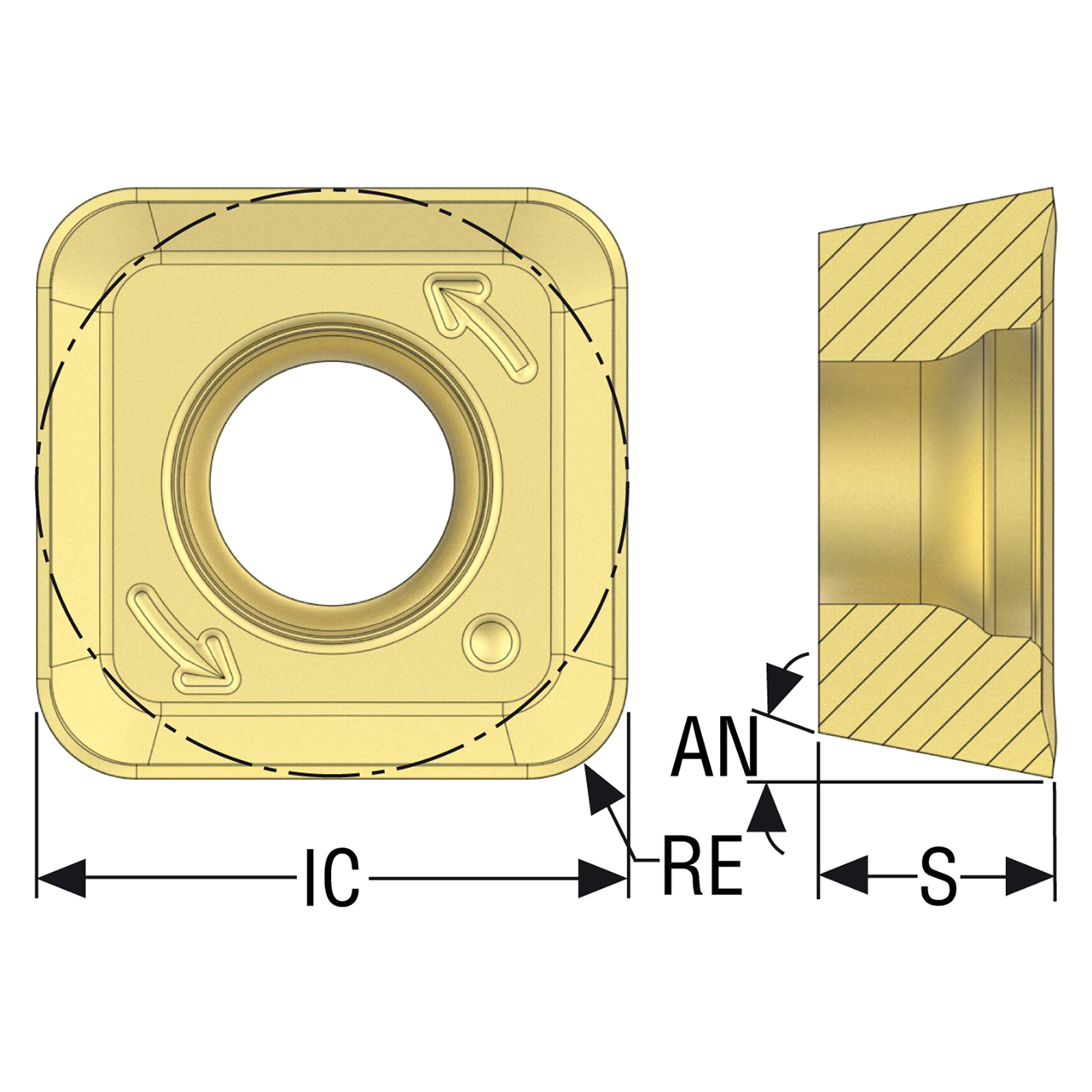

| Inscribed Circle Diameter (Decimal Inch) | 0.394" |
| Inscribed Circle Diameter (mm) | 10.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.327" |
| Cutting Edge Effective Length (mm) | 8.30mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.394" |
| Theoretical Cutting Edge Length (mm) | 10.00mm |
| Corner Radius (Decimal Inch) | 0.067" |
| Corner Radius (mm) | 1.70mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 11 Degree |
| Insert Rake Angle (Degree) | 13 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M10 |
| Pocket Seat Code of The Cutter | SPKT10T317 |
| Insert Size And Shape | SPKT10T317 |
| Insert Shape Code | S |
| Material | Carbide |

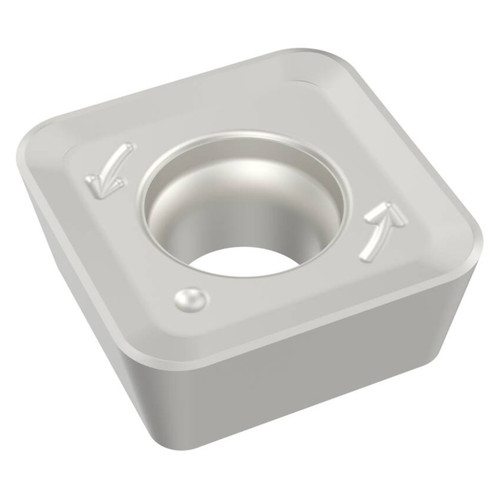

| Product Type | Milling Insert |
