| Manufacturer Part Number | 10127482 |
| Cutting Diameter (mm) | 63.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 59.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 123.75mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 109.44mm |
| Functional Length (mm) | 90.00mm |
| Maximum Depth of Cut (mm) | 69.00mm |
| Depth of Key Way (mm) | 7.00mm |
| Keyway Width (mm) | 12.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Orthogonal Angle (Degree) | -13 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 5 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Maximum Rotational Speed (rpm) | 10500 rpm |
| Insert Shape Code | X / S |
| Shank Type | Arbor |

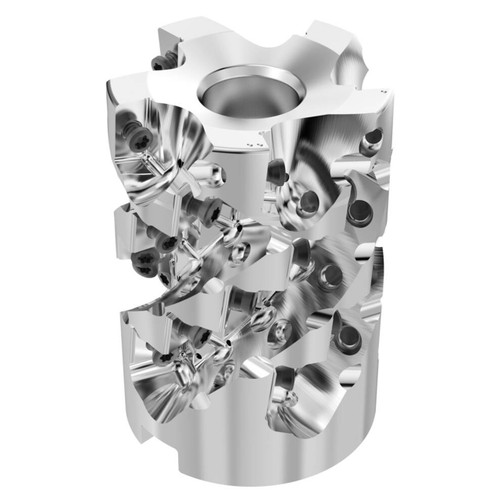

| Product Type | Indexable Square-Shoulder End Mill |
