Product Specifications
| Manufacturer Part Number | 10127485 |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Cutting Diameter (mm) | 50.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 3.911" |
| Maximum Helical Interpolation Hole Diameter (mm) | 99.35mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 3.348" |
| Minimum Helical Interpolation Hole Diameter (mm) | 85.04mm |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Protruding Length (Decimal Inch) | 2.441" |
| Protruding Length (mm) | 62.00mm |
| Shank Length (Decimal Inch) | 2.728" |
| Shank Length (mm) | 69.30mm |
| Overall Length (Decimal Inch) | 5.169" |
| Overall Length (mm) | 131.30mm |
| Maximum Depth of Cut (mm) | 47.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.850" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -12.5 Degree |
| Rake Radial Angle (Degree) | -12.5 Degree |
| Rake Orthogonal Angle (Degree) | -12.5 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Ramping Angle (Degree) | 2 Degree |
| Maximum Rotational Speed (rpm) | 11800 rpm |
| Insert Shape Code | X / S |
| Shank Type | Weldon |

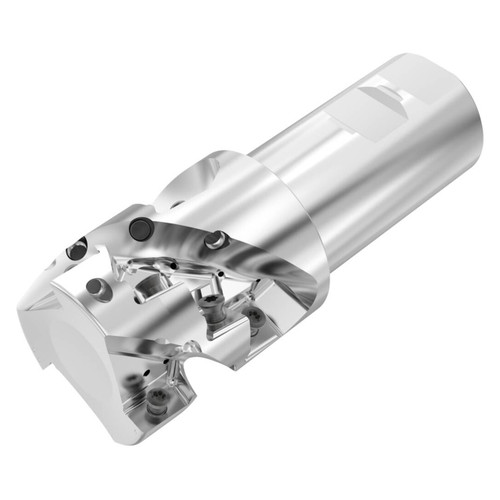

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2"
Cutting Diameter (Decimal Inch):
2.0000"
Cutting Diameter (mm):
50.80mm
Shank Type:
Weldon
Shank Diameter (Inch):
1-1/2"
Shank Diameter (Decimal Inch):
1.5000"
Shank Diameter (mm):
38.10mm
Overall Length (Inch):
5-11/65"
Overall Length (Decimal Inch):
5.1693"
Overall Length (mm):
131.30mm
