Product Specifications

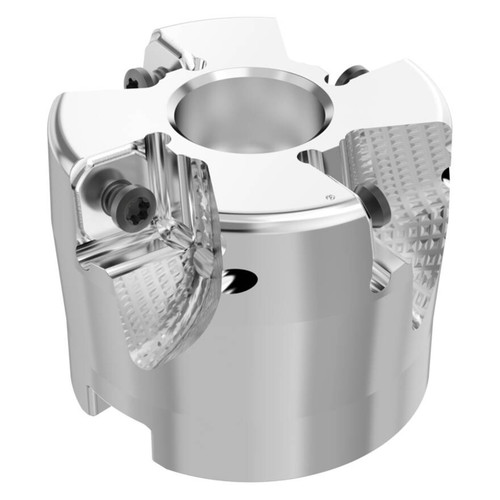

| Manufacturer Part Number | 10134775 |
| Cutting Diameter (mm) | 50.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Maximum Cutting Diameter (mm) | 51.20mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Orthogonal Angle (Degree) | -10.2 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 88 Degree |
| Maximum Rotational Speed (rpm) | 12600 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |
| Product Type | Indexable Chamfer & Angle Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
interval quantity:
1
