Product Specifications
| Manufacturer Part Number | 10134788 |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Cutting Diameter (mm) | 50.80mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.850" |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.051" |
| Maximum Cutting Diameter (mm) | 52.10mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.354" |
| Depth of Key Way (Decimal Inch) | 0.193" |
| Depth of Key Way (mm) | 4.90mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Orthogonal Angle (Degree) | -10.22 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 88 Degree |
| Maximum Rotational Speed (rpm) | 12600 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

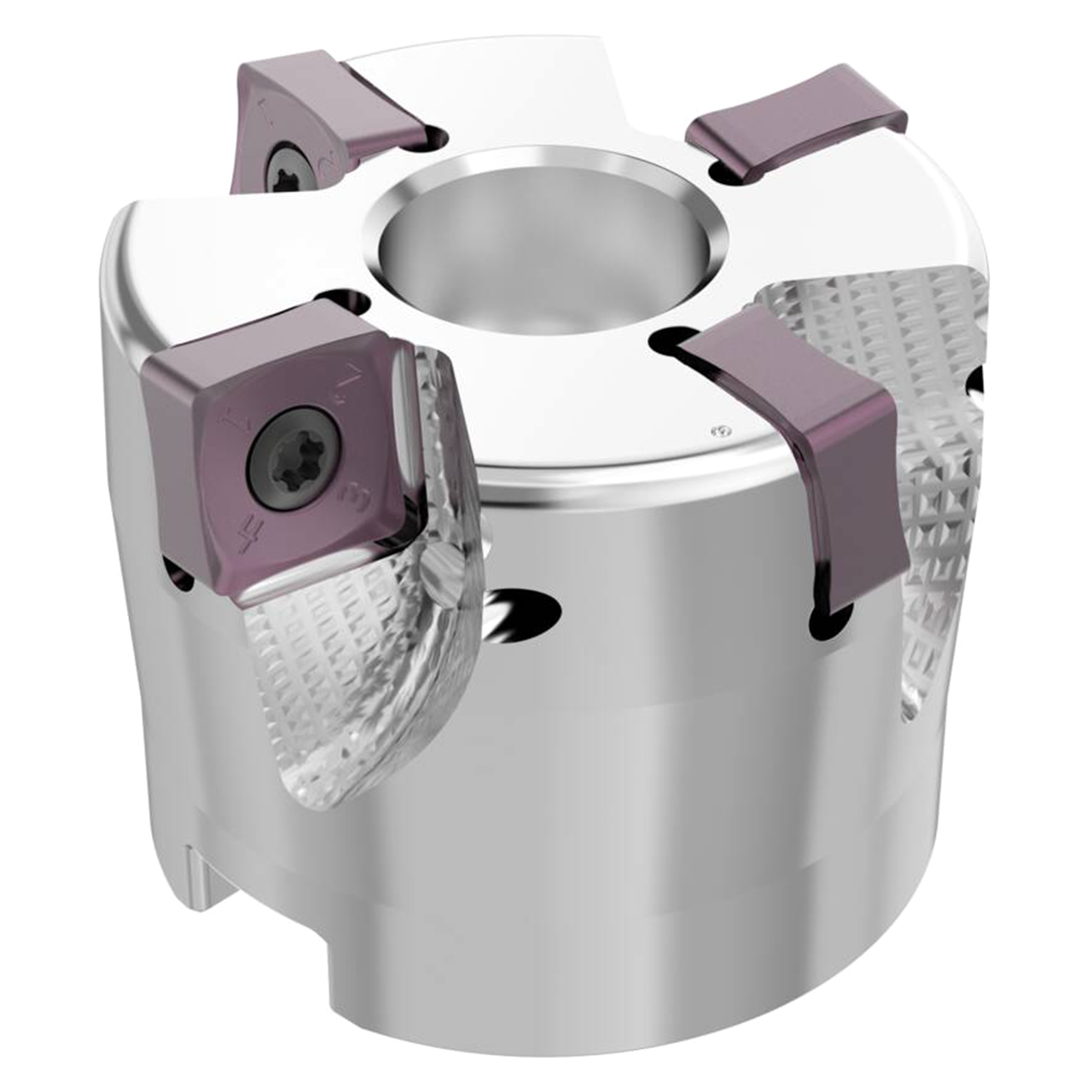

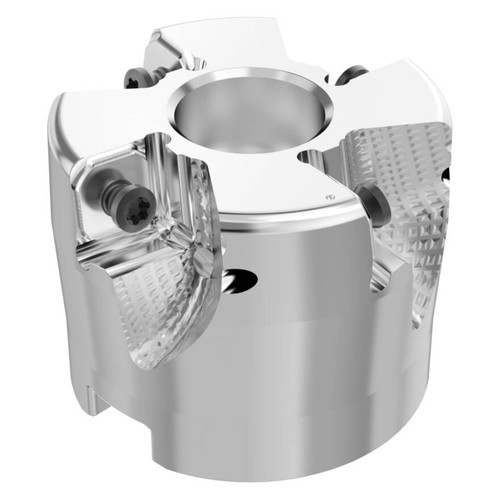

| Product Type | Indexable Chamfer & Angle Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
interval quantity:
1
