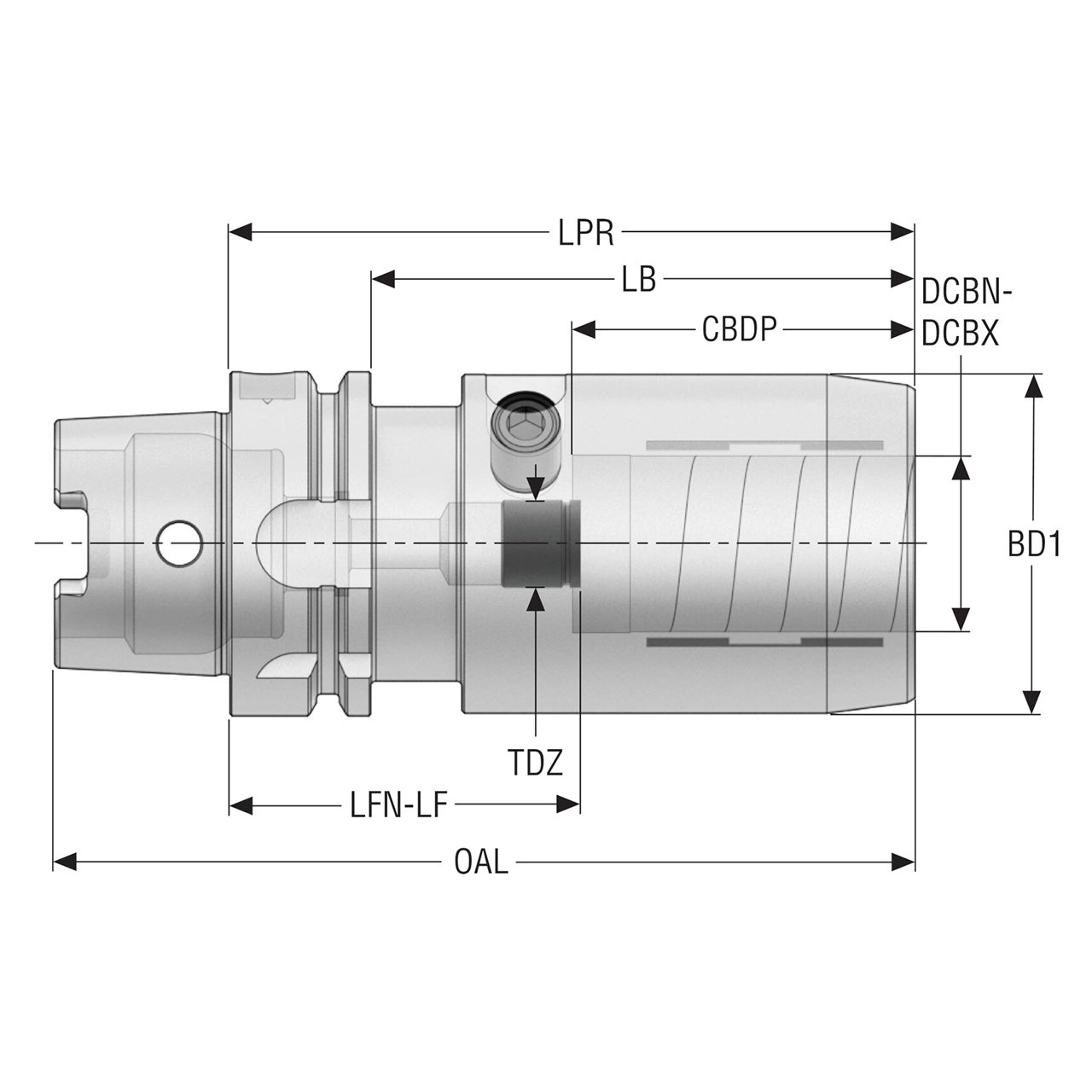

Product Specifications
| Manufacturer Part Number | 10137263 |
| Connection Bore Diameter (Decimal Inch) | 0.394" |
| Connection Bore Diameter (mm) | 10.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Diameter 1 (Decimal Inch) | 1.181" |
| Body Diameter 1 (mm) | 30.00mm |
| Body Diameter 2 (Decimal Inch) | 1.969" |
| Body Diameter 2 (mm) | 50.00mm |
| Thread Diameter Size | M8x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 42.50mm |
| Body Length (Decimal Inch) | 2.128" |
| Body Length (mm) | 54.05mm |
| Body Length 1 (Decimal Inch) | 1.378" |
| Body Length 1 (mm) | 35.00mm |
| Functional Length (Decimal Inch) | 1.929" |
| Functional Length (mm) | 49.00mm |
| Minimum Functional Length (Decimal Inch) | 1.535" |
| Minimum Functional Length (mm) | 39.00mm |
| Protruding Length (Decimal Inch) | 3.150" |
| Protruding Length (mm) | 80.00mm |
| Overall Length (Decimal Inch) | 4.406" |
| Overall Length (mm) | 111.90mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | HSK-A & HSK-T/A |
| Product Type | Hydraulic Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-2/11"
Body Diameter (Decimal Inch):
1.1810"
Body Diameter (mm):
30.00mm
Overall Length (Inch):
4-13/32"
Overall Length (Decimal Inch):
4.4060"
Overall Length (mm):
111.90mm
