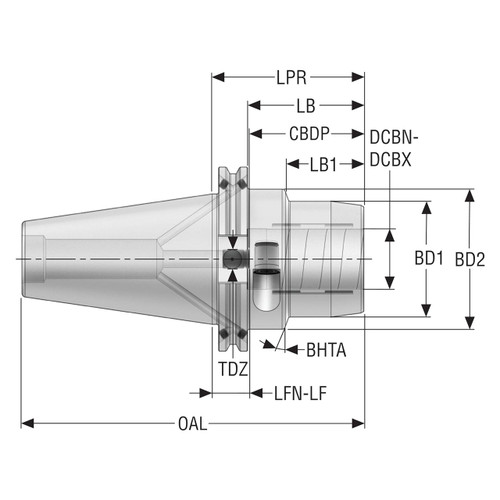

Product Specifications
| Manufacturer Part Number | 10137296 |
| Connection Bore Diameter (Decimal Inch) | 1.260" |
| Connection Bore Diameter (mm) | 32.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Minimum Connection Bore Diameter (mm) | 32.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Maximum Connection Bore Diameter (mm) | 32.00mm |
| Body Diameter 1 (Decimal Inch) | 2.441" |
| Body Diameter 1 (mm) | 62.00mm |
| Body Diameter 2 (Decimal Inch) | 2.953" |
| Body Diameter 2 (mm) | 75.00mm |
| Thread Diameter Size | M10x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 62.50mm |
| Body Length (Decimal Inch) | 2.439" |
| Body Length (mm) | 61.95mm |
| Body Length 1 (Decimal Inch) | 1.575" |
| Body Length 1 (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.181" |
| Functional Length (mm) | 30.00mm |
| Minimum Functional Length (Decimal Inch) | 0.787" |
| Minimum Functional Length (mm) | 20.00mm |
| Protruding Length (Decimal Inch) | 3.189" |
| Protruding Length (mm) | 81.00mm |
| Overall Length (Decimal Inch) | 7.189" |
| Overall Length (mm) | 182.60mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | CAT & CAT Taper-Face |
| Product Type | Hydraulic Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
2-15/34"
Body Diameter (Decimal Inch):
2.4410"
Body Diameter (mm):
62.00mm
Overall Length (Inch):
7-7/37"
Overall Length (Decimal Inch):
7.1890"
Overall Length (mm):
182.60mm
interval quantity:
1
