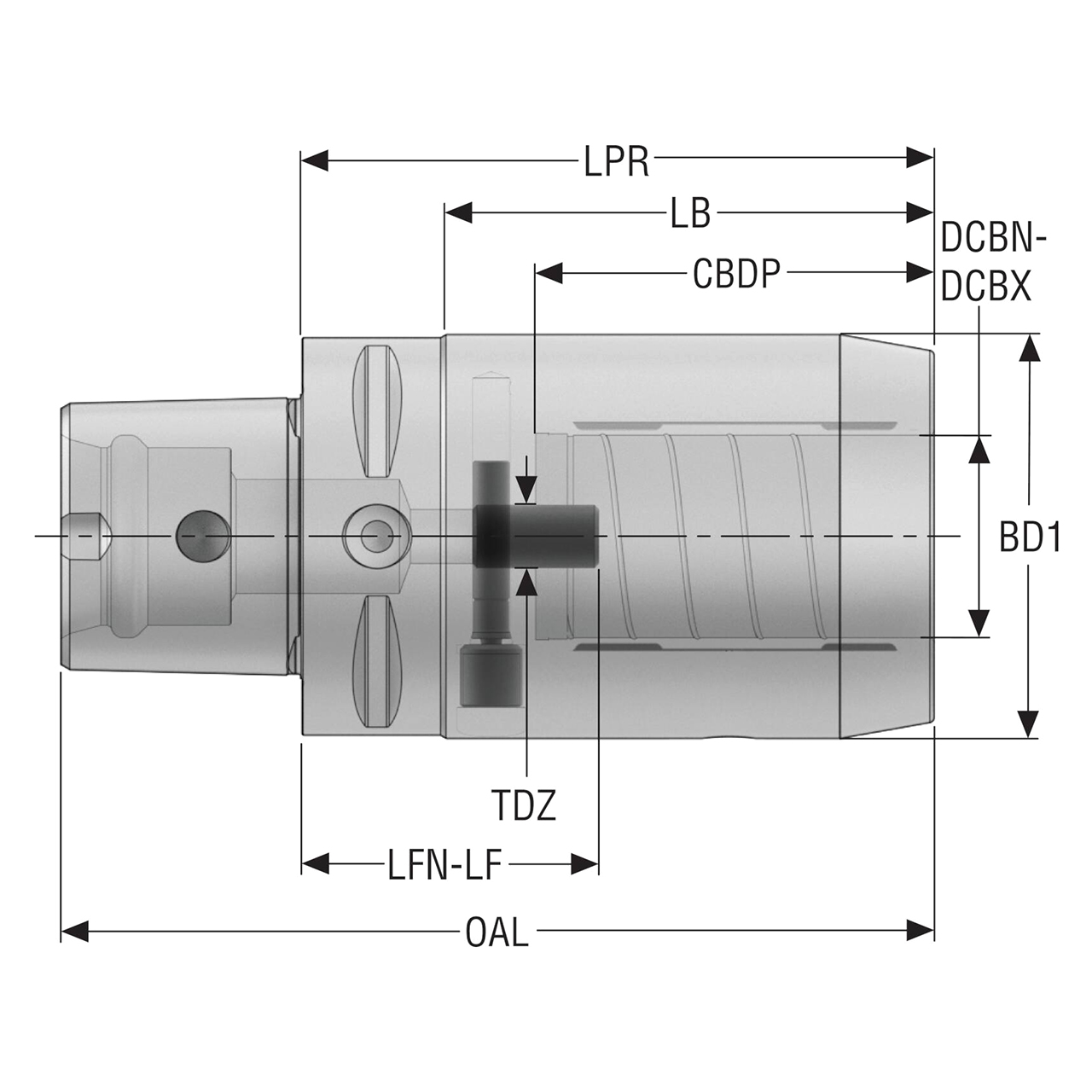

Product Specifications
| Manufacturer Part Number | 10137314 |
| Connection Bore Diameter (Decimal Inch) | 0.394" |
| Connection Bore Diameter (mm) | 10.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Diameter 1 (Decimal Inch) | 1.181" |
| Body Diameter 1 (mm) | 30.00mm |
| Body Diameter 2 (Decimal Inch) | 1.969" |
| Body Diameter 2 (mm) | 50.00mm |
| Thread Diameter Size | M8x1.25 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 42.00mm |
| Body Length (Decimal Inch) | 1.969" |
| Body Length (mm) | 50.00mm |
| Body Length 1 (Decimal Inch) | 1.339" |
| Body Length 1 (mm) | 34.00mm |
| Functional Length (Decimal Inch) | 1.693" |
| Functional Length (mm) | 43.00mm |
| Minimum Functional Length (Decimal Inch) | 1.299" |
| Minimum Functional Length (mm) | 33.00mm |
| Protruding Length (Decimal Inch) | 2.953" |
| Protruding Length (mm) | 75.00mm |
| Overall Length (Decimal Inch) | 4.449" |
| Overall Length (mm) | 113.00mm |
| Body Half Taper Angle Degree) | 30 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | Capto |
| Product Type | Hydraulic Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Decimal Inch):
1.1810"
Body Diameter (mm):
30.00mm
Overall Length (Decimal Inch):
4.4490"
Overall Length (mm):
113.00mm
