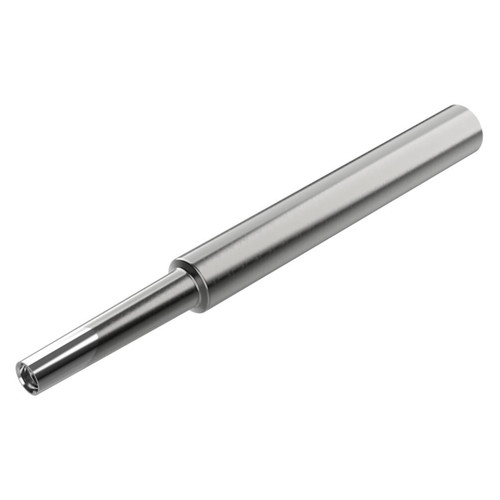

| Manufacturer Part Number | 10138082 |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.724" |
| Contact Surface Diameter Workpiece Side (mm) | 18.40mm |
| Functional Length (Decimal Inch) | 3.150" |
| Functional Length (mm) | 80.00mm |
| Length Variant Cataloque | 4 |
| Overall Length (Decimal Inch) | 8.000" |
| Overall Length (mm) | 203.20mm |
| Body Half Taper Angle Degree) | 1 Degree |
| Body Half Taper Angle 1 (Degree) | 1 Degree |
| Body Half Taper Angle 2 (Degree) | 49 Degree |
| Maximum Rotational Speed (rpm) | 19000 rpm |
| Coolant Supply Property | 1 |
| Connection Size Code | E20 |
| Connection Size Code Workpiece Side | E20 |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Product Type | Replaceable Tip Milling Shank |
