| Manufacturer Part Number | 10138092 |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Contact Surface Diameter Workpiece Side (mm) | 9.60mm |
| Functional Length (mm) | 10.00mm |
| Length Variant Cataloque | 2 |
| Overall Length (mm) | 55.00mm |
| Body Half Taper Angle 2 (Degree) | 12.2 Degree |
| Maximum Rotational Speed (rpm) | 40000 rpm |
| Coolant Supply Property | 1 |
| Connection Size Code | E10 |
| Connection Size Code Workpiece Side | E10 |
| Cutting Item Material Type | STEEL |
| Shank Type | Cylindrical |

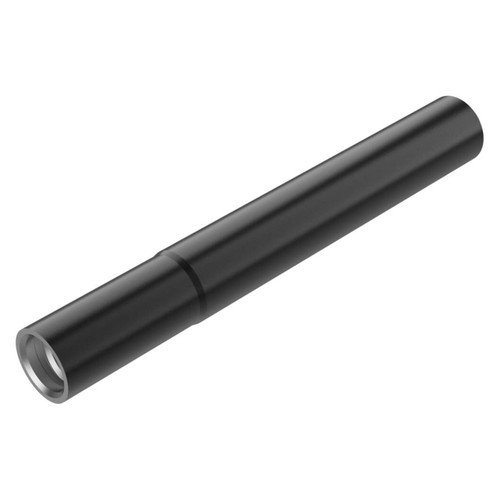

| Product Type | Replaceable Tip Milling Shank |
