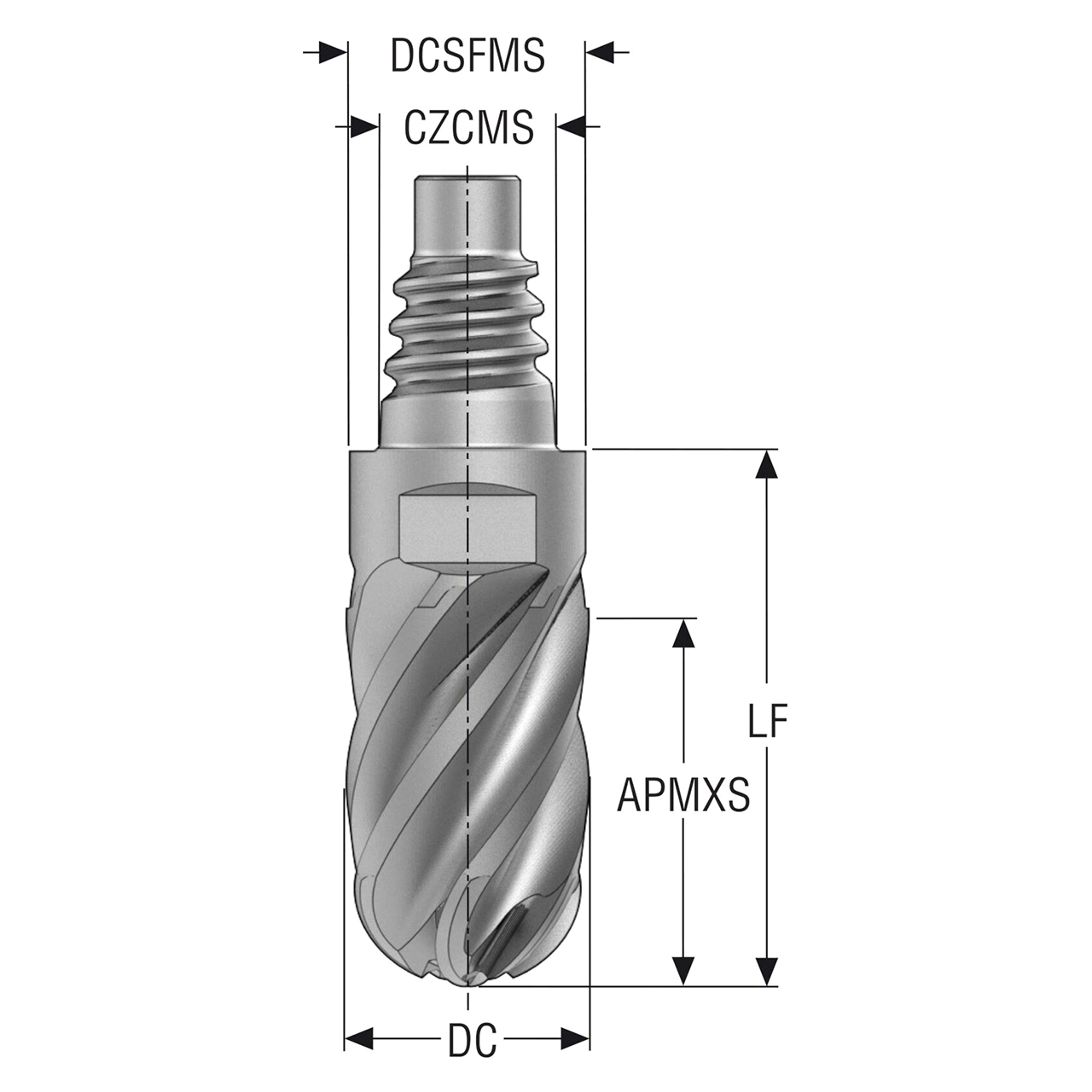

Product Specifications
| Manufacturer Part Number | 10138224 |
| Cutting Diameter (mm) | 16.00mm |
| Cutting Diameter 1 (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (mm) | 15.50mm |
| Lower Cutting Diameter Tolerance (mm) | -0.05 |
| Maximum Helical Interpolation Hole Diameter (mm) | 28.80mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 20.80mm |
| Corner Radius (mm) | 8.00mm |
| Cutting Edge Effective Length (mm) | 24.00mm |
| Functional Length (mm) | 34.10mm |
| Overall Length (mm) | 51.10mm |
| Maximum Depth of Cut (mm) | 24.00mm |
| Theoretical Cutting Edge Length (mm) | 24.00mm |
| Profile Radius (mm) | 7.98mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 6 |
| Cutting Geometry Type | XSB720 |
| Cutting Geometry Type Technical | XSB720 |
| Connection Size Code | E16 |
| Connection Size Code Machine Side | E16 |
| Face Cutting Edge Count | 6 |
| Flute Helix Angle (Degree) | 38 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Orthogonal Angle (Degree) | 80 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 3 |
| Number of Flute | 6 |
| Pheripheral Cutting Edge Count | 6 |
| Maximum Ramping Angle (Degree) | 2.5 Degree |
| Axial Runout (mm) | 0.01mm |
| Coating | HXT |
| Product Type | Exchangeable Head Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
17/27"
Mill Diameter (Decimal Inch):
0.6299"
Mill Diameter (mm):
16.00mm
Number of Flutes:
6
Corner Radius (Inch):
5/16"
Corner Radius (Decimal Inch):
0.3100"
Corner Radius (mm):
8.00mm
Shank Type:
0
Material:
Carbide
Finish/Coating:
HXT
Overall Length (Inch):
2-1/85"
Overall Length (Decimal Inch):
2.0118"
Overall Length (mm):
51.10mm
Cutting Direction:
Right Hand
