Seco Tools 10139011 | T34-R45H02C03-10X0.75-65R MF10X0.75 Thread Size x 0.394" Diameter x 0.394" Shank x 3.614" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

$125.00 $86.25
(You save $38.75)
Brand:
Seco Tools
Thread Size:
MF10X0.75
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Overall Length (Inch):
3-35/57"
Overall Length (Decimal Inch):
3.6140"
Overall Length (mm):
91.80mm
interval quantity:
1
SKU:
17993895
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139011 | T34-R45H02C03-10X0.75-65R MF10X0.75 Thread Size x 0.394" Diameter x 0.394" Shank x 3.614" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

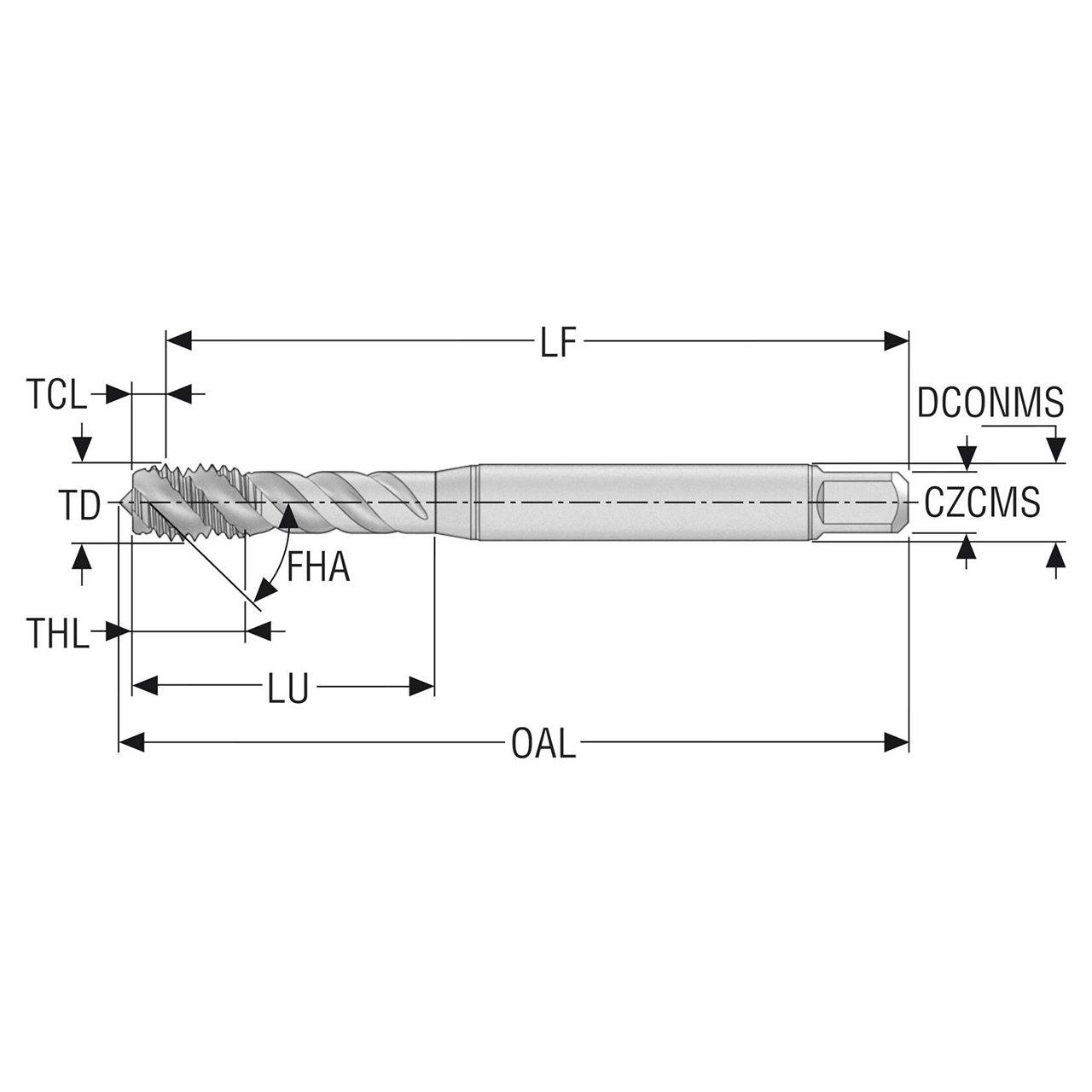

Product Specifications
Manufacturer Part Number10139011
Thread Diameter (Decimal Inch)0.394"
Thread Diameter (mm)10.00mm
Threading Chamfer Length (Decimal Inch)0.085"
Threading Chamfer Length (mm)2.17mm
Tap Chamfer Length (Decimal Inch)0.085"
Tap Chamfer Length (mm)2.17mm
Connection Diameter Machine Side (Decimal Inch)0.394"
Connection Diameter Machine Side (mm)10.00mm
Shank Diameter (Decimal Inch)0.394"
Shank Diameter (mm)10.00mm
Functional Length (Decimal Inch)3.458"
Functional Length (mm)87.83mm
Usable Length (Decimal Inch)1.378"
Usable Length (mm)35.00mm
Overall Length (Decimal Inch)3.614"
Overall Length (mm)91.80mm
Thread Length (Decimal Inch)0.512"
Thread Length (mm)13.00mm
Thread Diameter SizeMF10X0.75
Recommended Premachined Hole Diameter (Decimal Inch)0.362"
Recommended Premachined Hole Diameter (mm)9.20mm
Connection Size Code10.00X8.00
Connection Size Code Machine Side10.00X8.00
Maximum Premachined Hole Diameter (Decimal Inch)0.369"
Maximum Premachined Hole Diameter (mm)9.38mm
Minimum Thread Pitch (Decimal Inch)0.030"
Minimum Thread Pitch (mm)0.75mm
Maximum Thread Pitch (Decimal Inch)0.030"
Maximum Thread Pitch (mm)0.75mm
Flute Helix Angle (Degree)45 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeMF
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeSpiral Flute Tap
