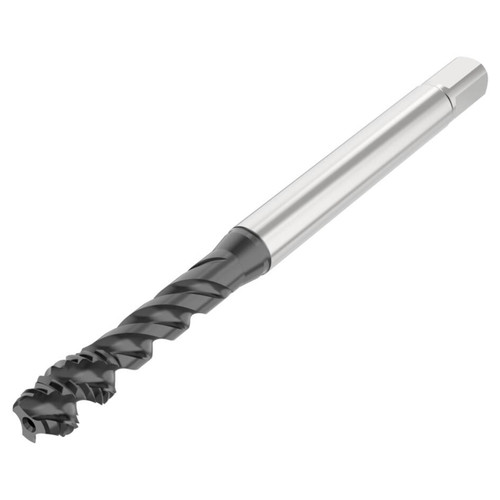

Seco Tools 10139026 | T34A-R45H02C03-10X1-65R MF10X1.0 Thread Size x 0.394" Diameter x 0.394" Shank x 3.543" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

$82.11
Brand:
Seco Tools
Thread Size:
MF10X1.0
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Overall Length (Inch):
3-19/35"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
90.00mm
interval quantity:
1
SKU:
17993910
Weight:
0.09 LBS
Shipping:
Free Shipping
Seco Tools 10139026 | T34A-R45H02C03-10X1-65R MF10X1.0 Thread Size x 0.394" Diameter x 0.394" Shank x 3.543" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

Product Specifications
Manufacturer Part Number10139026
Thread Diameter (Decimal Inch)0.394"
Thread Diameter (mm)10.00mm
Threading Chamfer Length (Decimal Inch)0.107"
Threading Chamfer Length (mm)2.72mm
Tap Chamfer Length (Decimal Inch)0.107"
Tap Chamfer Length (mm)2.72mm
Connection Diameter Machine Side (Decimal Inch)0.394"
Connection Diameter Machine Side (mm)10.00mm
Shank Diameter (Decimal Inch)0.394"
Shank Diameter (mm)10.00mm
Functional Length (Decimal Inch)3.436"
Functional Length (mm)87.28mm
Usable Length (Decimal Inch)1.378"
Usable Length (mm)35.00mm
Overall Length (Decimal Inch)3.543"
Overall Length (mm)90.00mm
Thread Length (Decimal Inch)0.512"
Thread Length (mm)13.00mm
Thread Diameter SizeMF10X1.0
Recommended Premachined Hole Diameter (Decimal Inch)0.354"
Recommended Premachined Hole Diameter (mm)9.00mm
Connection Size Code10.00X8.00
Connection Size Code Machine Side10.00X8.00
Maximum Premachined Hole Diameter (Decimal Inch)0.360"
Maximum Premachined Hole Diameter (mm)9.15mm
Minimum Thread Pitch (Decimal Inch)0.039"
Minimum Thread Pitch (mm)1.00mm
Maximum Thread Pitch (Decimal Inch)0.039"
Maximum Thread Pitch (mm)1.00mm
Flute Helix Angle (Degree)45 Degree
Number of Flute3
Coolant Entry Style Code1
Coolant Supply Property1
Coolant Exit Style Code1
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeMF
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeSpiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Thread Size:
MF10X1.0
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Overall Length (Inch):
3-19/35"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
90.00mm
interval quantity:
1
