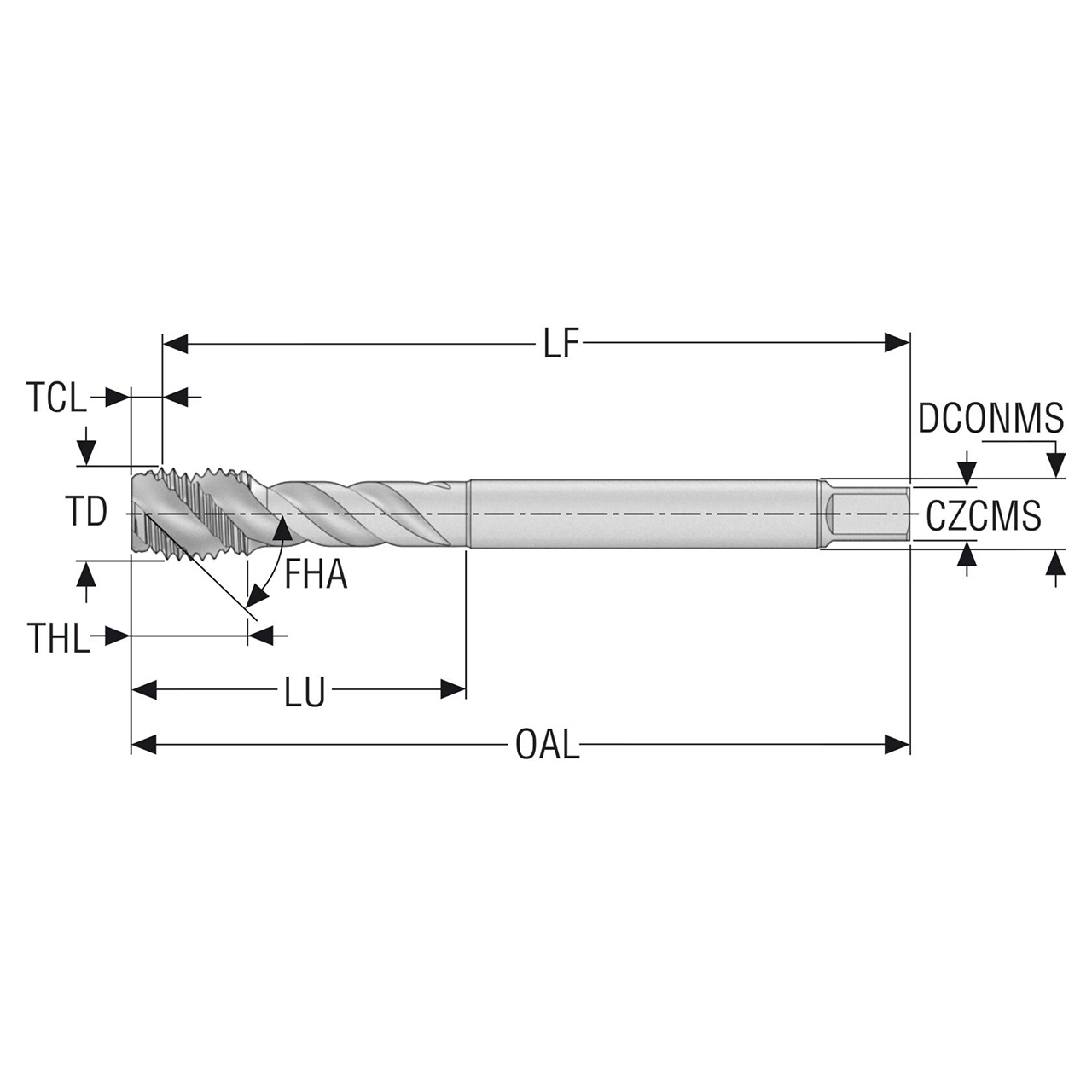

| Manufacturer Part Number | 10139037 |
| Thread Diameter (Decimal Inch) | 0.551" |
| Thread Diameter (mm) | 14.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.119" |
| Threading Chamfer Length (mm) | 3.01mm |
| Tap Chamfer Length (Decimal Inch) | 0.119" |
| Tap Chamfer Length (mm) | 3.01mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.433" |
| Connection Diameter Machine Side (mm) | 11.00mm |
| Shank Diameter (Decimal Inch) | 0.433" |
| Shank Diameter (mm) | 11.00mm |
| Functional Length (Decimal Inch) | 3.819" |
| Functional Length (mm) | 96.99mm |
| Usable Length (Decimal Inch) | 2.795" |
| Usable Length (mm) | 71.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | MF14X1.5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.492" |
| Recommended Premachined Hole Diameter (mm) | 12.50mm |
| Connection Size Code | 11.00X9.00 |
| Connection Size Code Machine Side | 11.00X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.499" |
| Maximum Premachined Hole Diameter (mm) | 12.68mm |
| Minimum Thread Pitch (Decimal Inch) | 0.059" |
| Minimum Thread Pitch (mm) | 1.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.059" |
| Maximum Thread Pitch (mm) | 1.50mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | E |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Spiral Flute Tap |
