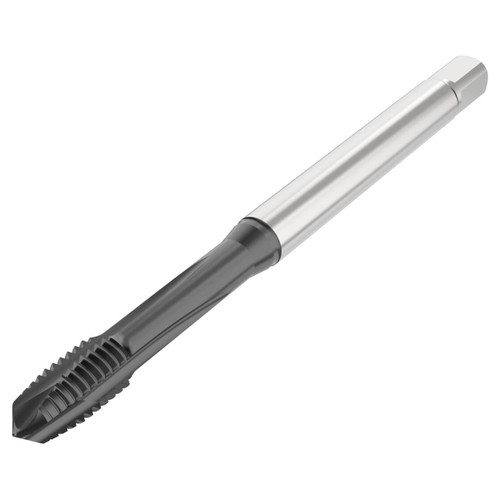

Seco Tools 10139042 | T34-PH08B03-5-40-22R UNC5-40 Thread Size x 0.125" Diameter x 0.138" Shank x 2.252" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

$52.20 $36.02
(You save $16.18)
Brand:
Seco Tools
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2520"
Overall Length (mm):
57.20mm
Number of Flutes:
3
Material:
HSS-E-PM
Thread Standard:
UNC
interval quantity:
10
SKU:
17993926
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Seco Tools 10139042 | T34-PH08B03-5-40-22R UNC5-40 Thread Size x 0.125" Diameter x 0.138" Shank x 2.252" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

Product Specifications
Manufacturer Part Number10139042
Thread Diameter (Decimal Inch)0.125"
Thread Diameter (mm)3.18mm
Threading Chamfer Length (Decimal Inch)0.116"
Threading Chamfer Length (mm)2.94mm
Tap Chamfer Length (Decimal Inch)0.116"
Tap Chamfer Length (mm)2.94mm
Connection Diameter Machine Side (Decimal Inch)0.138"
Connection Diameter Machine Side (mm)3.50mm
Shank Diameter (Decimal Inch)0.138"
Shank Diameter (mm)3.50mm
Functional Length (Decimal Inch)2.089"
Functional Length (mm)53.06mm
Usable Length (Decimal Inch)0.709"
Usable Length (mm)18.00mm
Overall Length (Decimal Inch)2.252"
Overall Length (mm)57.20mm
Thread Length (Decimal Inch)0.276"
Thread Length (mm)7.00mm
Thread Diameter SizeUNC5-40
Recommended Premachined Hole Diameter (Decimal Inch)0.104"
Recommended Premachined Hole Diameter (mm)2.65mm
Connection Size Code3.50X2.70
Connection Size Code Machine Side3.50X2.70
Maximum Premachined Hole Diameter (Decimal Inch)0.106"
Maximum Premachined Hole Diameter (mm)2.70mm
Minimum Threads Per Inch (mm)40.00mm
Maximum Threads Per Inch (mm)40.00mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeB
Thread Form TypeUNC
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeStraight Flute Tap
