Seco Tools 10139048 | T34-PH08B03-5/16-18-22R UNC5/16-18 Thread Size x 0.313" Diameter x 0.315" Shank x 3.673" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

$43.75
Brand:
Seco Tools
Thread Size:
UNC5/16-18
Overall Length (Inch):
3-35/52"
Overall Length (Decimal Inch):
3.6730"
Overall Length (mm):
93.30mm
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Thread Standard:
UNC
interval quantity:
1
SKU:
17993932
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
Seco Tools 10139048 | T34-PH08B03-5/16-18-22R UNC5/16-18 Thread Size x 0.313" Diameter x 0.315" Shank x 3.673" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

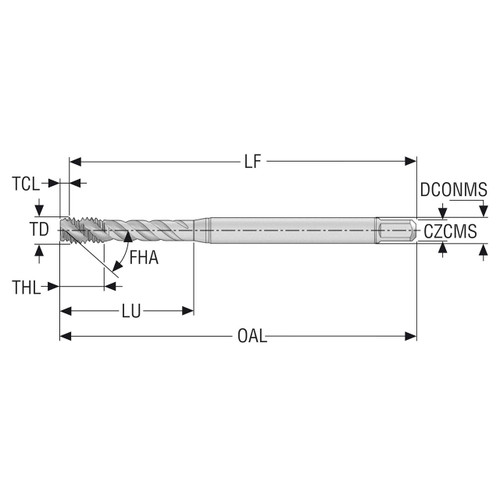

Product Specifications
Manufacturer Part Number10139048
Thread Diameter (Decimal Inch)0.313"
Thread Diameter (mm)7.94mm
Threading Chamfer Length (Decimal Inch)0.248"
Threading Chamfer Length (mm)6.31mm
Tap Chamfer Length (Decimal Inch)0.248"
Tap Chamfer Length (mm)6.31mm
Connection Diameter Machine Side (Decimal Inch)0.315"
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Functional Length (Decimal Inch)3.295"
Functional Length (mm)83.69mm
Usable Length (Decimal Inch)1.378"
Usable Length (mm)35.00mm
Overall Length (Decimal Inch)3.673"
Overall Length (mm)93.30mm
Thread Length (Decimal Inch)0.512"
Thread Length (mm)13.00mm
Thread Diameter SizeUNC5/16-18
Recommended Premachined Hole Diameter (Decimal Inch)0.260"
Recommended Premachined Hole Diameter (mm)6.60mm
Connection Size Code8.00X6.20
Connection Size Code Machine Side8.00X6.20
Maximum Premachined Hole Diameter (Decimal Inch)0.265"
Maximum Premachined Hole Diameter (mm)6.73mm
Minimum Threads Per Inch (mm)18.00mm
Maximum Threads Per Inch (mm)18.00mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeB
Thread Form TypeUNC
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeStraight Flute Tap
