Product Specifications

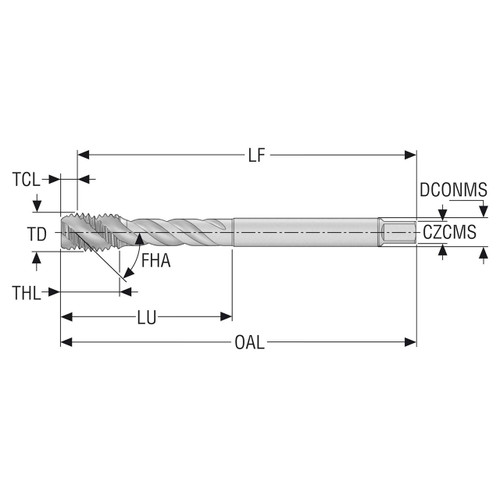

| Manufacturer Part Number | 10139051 |
| Thread Diameter (Decimal Inch) | 0.500" |
| Thread Diameter (mm) | 12.70mm |
| Threading Chamfer Length (Decimal Inch) | 0.355" |
| Threading Chamfer Length (mm) | 9.01mm |
| Tap Chamfer Length (Decimal Inch) | 0.355" |
| Tap Chamfer Length (mm) | 9.01mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.354" |
| Connection Diameter Machine Side (mm) | 9.00mm |
| Shank Diameter (Decimal Inch) | 0.354" |
| Shank Diameter (mm) | 9.00mm |
| Functional Length (Decimal Inch) | 3.976" |
| Functional Length (mm) | 100.99mm |
| Usable Length (Decimal Inch) | 3.268" |
| Usable Length (mm) | 83.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.709" |
| Thread Length (mm) | 18.00mm |
| Thread Diameter Size | UNC1/2-13 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.421" |
| Recommended Premachined Hole Diameter (mm) | 10.70mm |
| Connection Size Code | 9.00X7.00 |
| Connection Size Code Machine Side | 9.00X7.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.434" |
| Maximum Premachined Hole Diameter (mm) | 11.02mm |
| Minimum Threads Per Inch (mm) | 13.00mm |
| Maximum Threads Per Inch (mm) | 13.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | B |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
