Seco Tools 10139064 | T34-R45H08C06-1/2-13-22R UNC1/2-13 Thread Size x 0.500" Diameter x 0.354" Shank x 4.331" OAL 45 Degree Helix Angle 4 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

$74.52
Brand:
Seco Tools
Thread Size:
UNC1/2-13
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.00mm
interval quantity:
1
SKU:
17993948
Weight:
0.09 LBS
Shipping:
Calculated at Checkout
Seco Tools 10139064 | T34-R45H08C06-1/2-13-22R UNC1/2-13 Thread Size x 0.500" Diameter x 0.354" Shank x 4.331" OAL 45 Degree Helix Angle 4 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

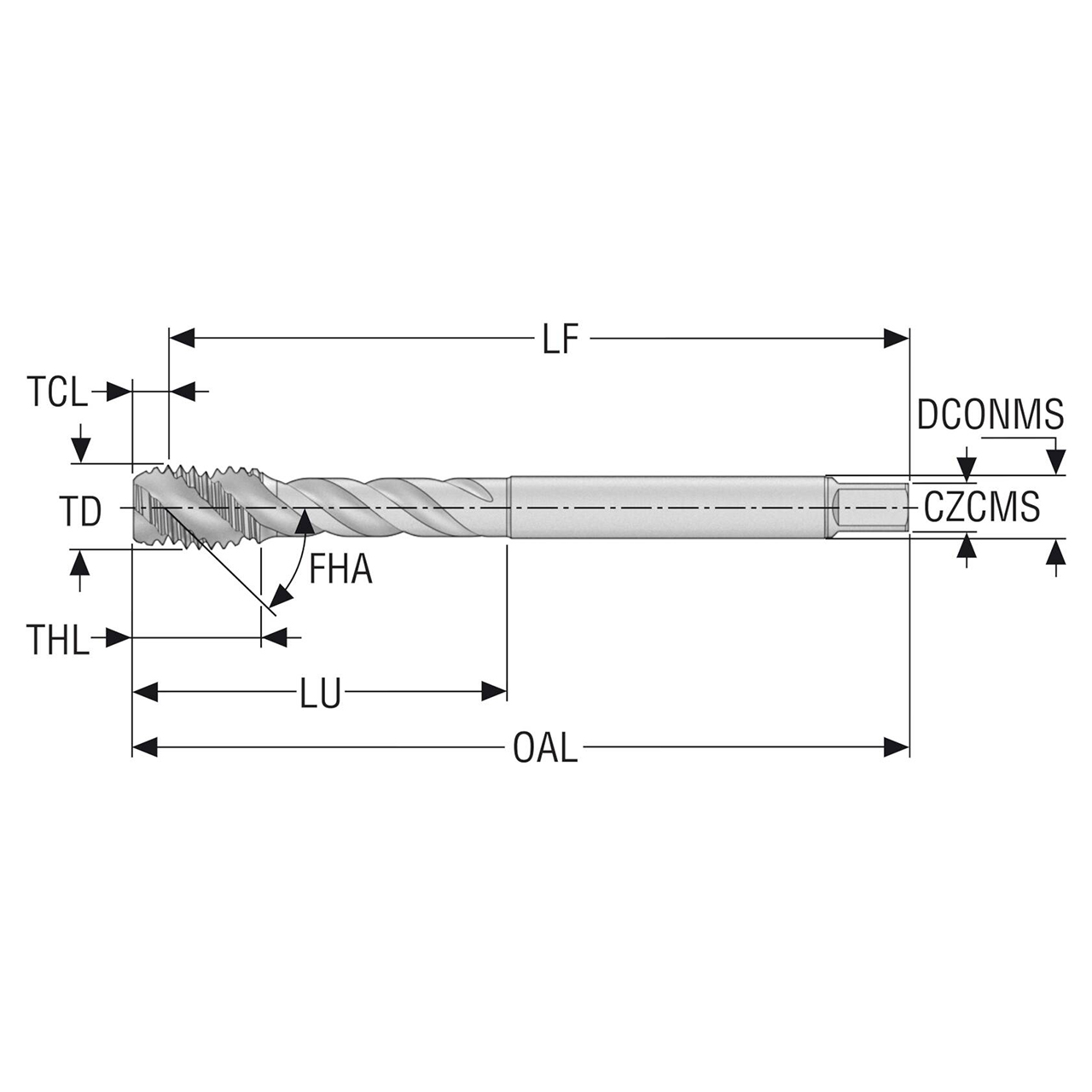

Product Specifications
Manufacturer Part Number10139064
Thread Diameter (Decimal Inch)0.500"
Thread Diameter (mm)12.70mm
Threading Chamfer Length (Decimal Inch)0.197"
Threading Chamfer Length (mm)4.99mm
Tap Chamfer Length (Decimal Inch)0.197"
Tap Chamfer Length (mm)4.99mm
Connection Diameter Machine Side (Decimal Inch)0.354"
Connection Diameter Machine Side (mm)9.00mm
Shank Diameter (Decimal Inch)0.354"
Shank Diameter (mm)9.00mm
Functional Length (Decimal Inch)4.134"
Functional Length (mm)105.01mm
Usable Length (Decimal Inch)3.268"
Usable Length (mm)83.00mm
Overall Length (Decimal Inch)4.331"
Overall Length (mm)110.00mm
Thread Length (Decimal Inch)0.709"
Thread Length (mm)18.00mm
Thread Diameter SizeUNC1/2-13
Recommended Premachined Hole Diameter (Decimal Inch)0.421"
Recommended Premachined Hole Diameter (mm)10.70mm
Connection Size Code9.00X7.00
Connection Size Code Machine Side9.00X7.00
Maximum Premachined Hole Diameter (Decimal Inch)0.434"
Maximum Premachined Hole Diameter (mm)11.02mm
Minimum Threads Per Inch (mm)13.00mm
Maximum Threads Per Inch (mm)13.00mm
Flute Helix Angle (Degree)45 Degree
Number of Flute4
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeC
Thread Form TypeUNC
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeSpiral Flute Tap
