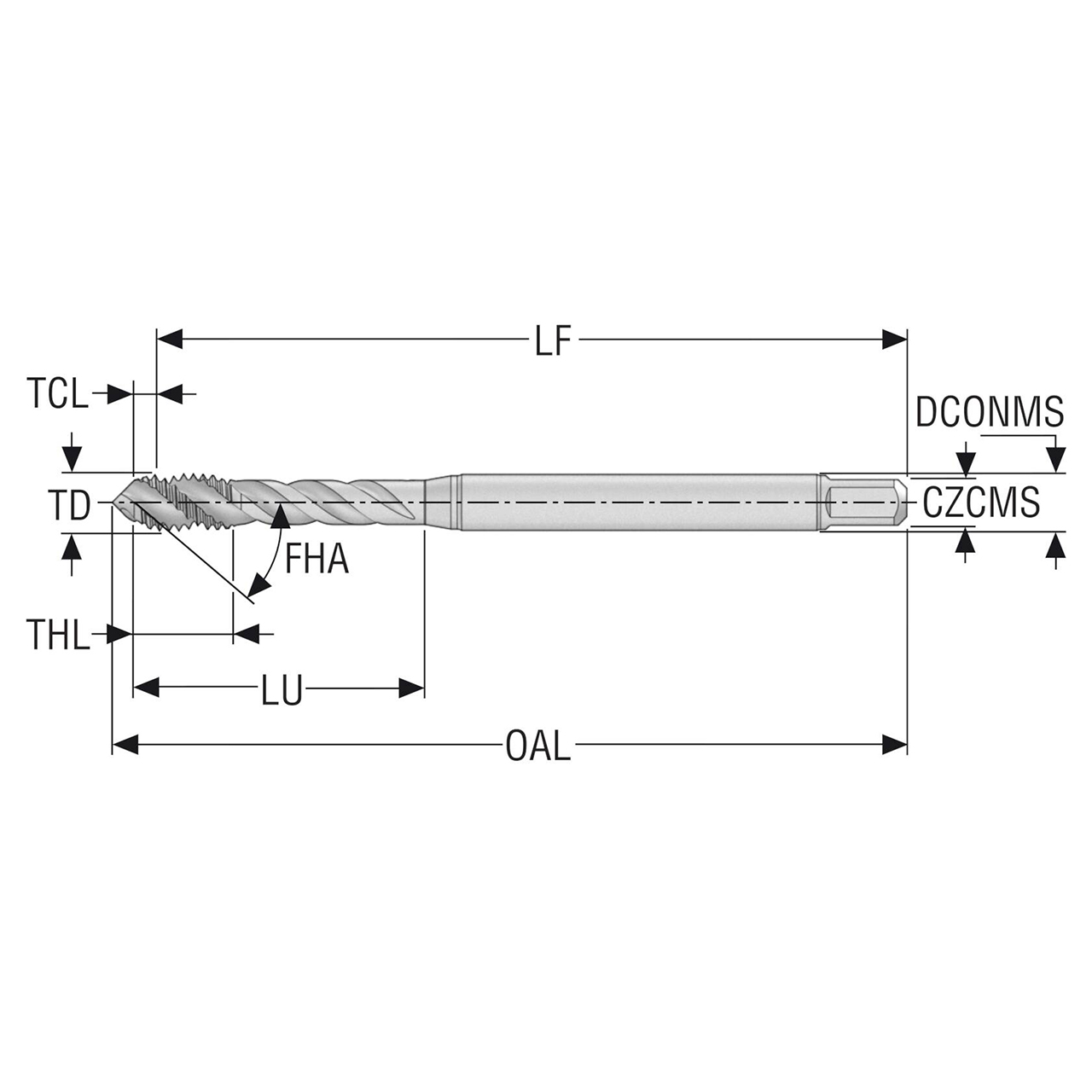

| Manufacturer Part Number | 10139156 |
| Thread Diameter (Decimal Inch) | 0.164" |
| Thread Diameter (mm) | 4.17mm |
| Threading Chamfer Length (Decimal Inch) | 0.073" |
| Threading Chamfer Length (mm) | 1.85mm |
| Tap Chamfer Length (Decimal Inch) | 0.073" |
| Tap Chamfer Length (mm) | 1.85mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.177" |
| Connection Diameter Machine Side (mm) | 4.50mm |
| Shank Diameter (Decimal Inch) | 0.177" |
| Shank Diameter (mm) | 4.50mm |
| Functional Length (Decimal Inch) | 2.408" |
| Functional Length (mm) | 61.15mm |
| Usable Length (Decimal Inch) | 0.827" |
| Usable Length (mm) | 21.00mm |
| Overall Length (Decimal Inch) | 2.543" |
| Overall Length (mm) | 64.60mm |
| Thread Length (Decimal Inch) | 0.276" |
| Thread Length (mm) | 7.00mm |
| Thread Diameter Size | UNC8-32 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.138" |
| Recommended Premachined Hole Diameter (mm) | 3.50mm |
| Connection Size Code | 4.50X3.40 |
| Connection Size Code Machine Side | 4.50X3.40 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.139" |
| Maximum Premachined Hole Diameter (mm) | 3.53mm |
| Minimum Threads Per Inch (mm) | 32.00mm |
| Maximum Threads Per Inch (mm) | 32.00mm |
| Flute Helix Angle (Degree) | 40 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Spiral Flute Tap |
