Product Specifications

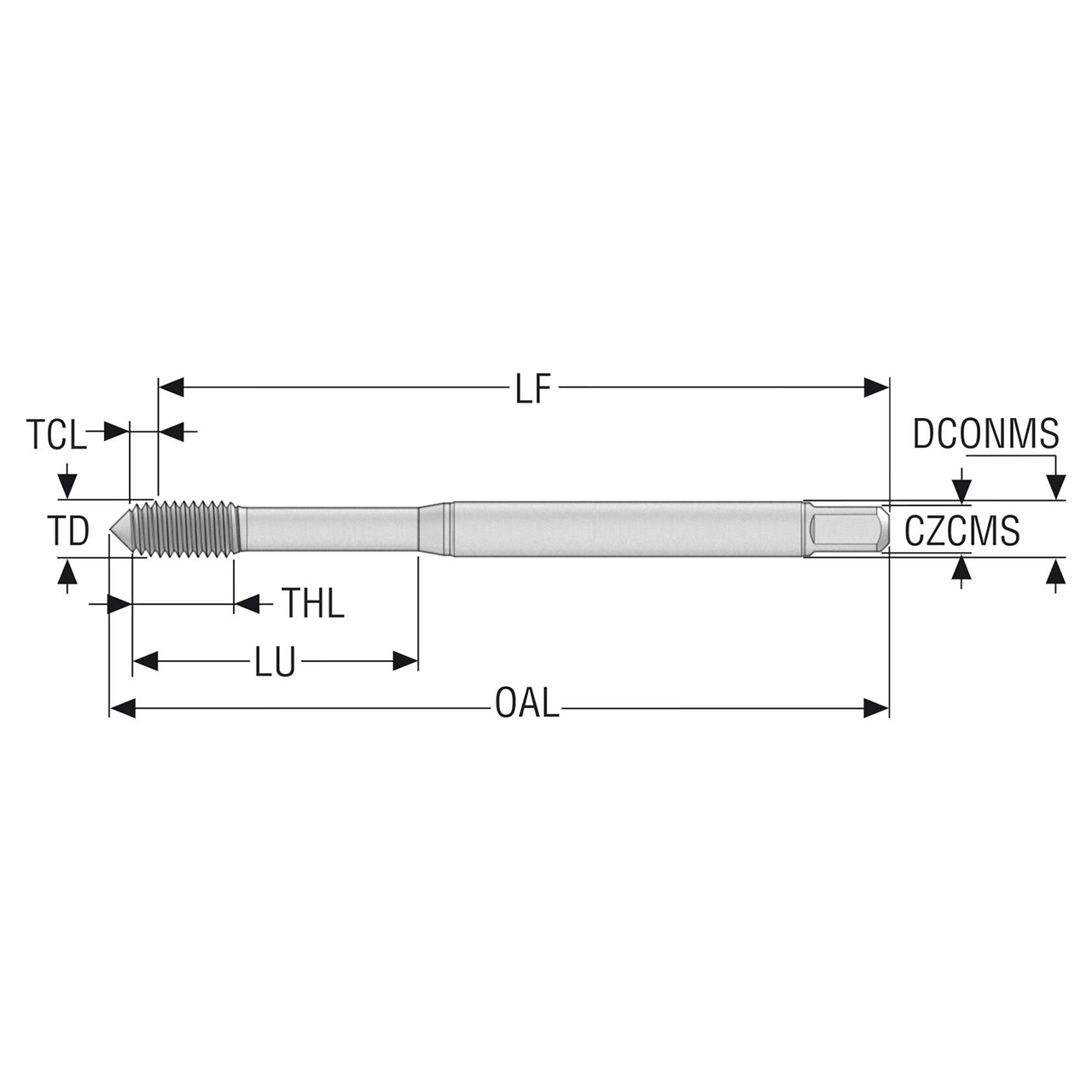

| Manufacturer Part Number | 10139190 |
| Thread Diameter (Decimal Inch) | 0.098" |
| Thread Diameter (mm) | 2.50mm |
| Threading Chamfer Length (Decimal Inch) | 0.043" |
| Threading Chamfer Length (mm) | 1.10mm |
| Tap Chamfer Length (Decimal Inch) | 0.043" |
| Tap Chamfer Length (mm) | 1.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.110" |
| Connection Diameter Machine Side (mm) | 2.80mm |
| Shank Diameter (Decimal Inch) | 0.110" |
| Shank Diameter (mm) | 2.80mm |
| Functional Length (Decimal Inch) | 1.925" |
| Functional Length (mm) | 48.90mm |
| Usable Length (Decimal Inch) | 0.354" |
| Usable Length (mm) | 9.00mm |
| Overall Length (Decimal Inch) | 2.035" |
| Overall Length (mm) | 51.70mm |
| Thread Length (Decimal Inch) | 0.354" |
| Thread Length (mm) | 9.00mm |
| Thread Diameter Size | M2.5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.092" |
| Recommended Premachined Hole Diameter (mm) | 2.33mm |
| Connection Size Code | 2.80X2.10 |
| Connection Size Code Machine Side | 2.80X2.10 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.092" |
| Maximum Premachined Hole Diameter (mm) | 2.33mm |
| Minimum Thread Pitch (Decimal Inch) | 0.018" |
| Minimum Thread Pitch (mm) | 0.45mm |
| Maximum Thread Pitch (Decimal Inch) | 0.018" |
| Maximum Thread Pitch (mm) | 0.45mm |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | None |
| Material | HSS-PM |
| Coating | TiAIN+TiN |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Thread Size:
M2.5
Finish/Coating:
TiAIN+TiN
Material:
HSS-PM
Thread Standard:
M
interval quantity:
1
