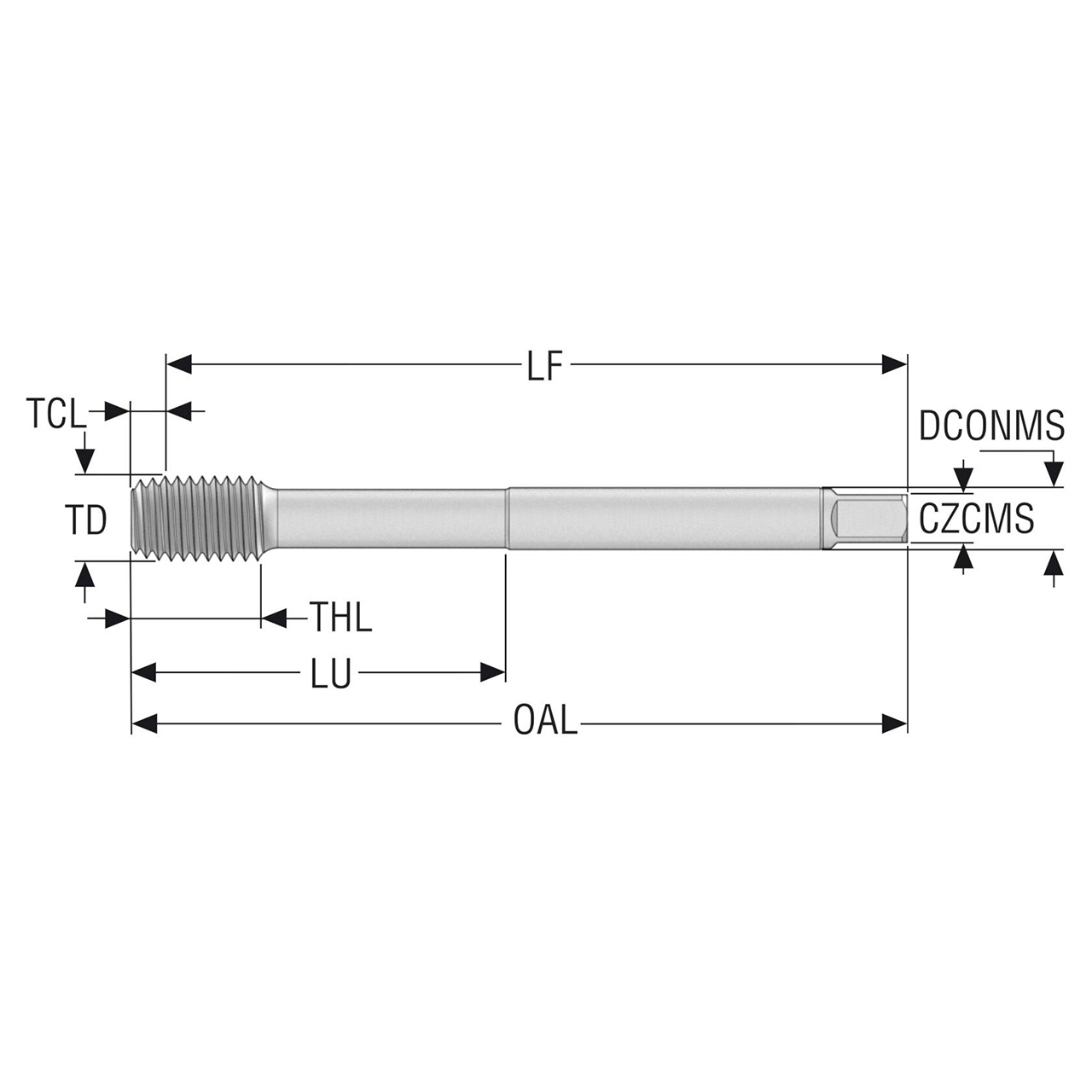

| Manufacturer Part Number | 10139198 |
| Thread Diameter (Decimal Inch) | 0.472" |
| Thread Diameter (mm) | 12.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.146" |
| Threading Chamfer Length (mm) | 3.70mm |
| Tap Chamfer Length (Decimal Inch) | 0.146" |
| Tap Chamfer Length (mm) | 3.70mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.354" |
| Connection Diameter Machine Side (mm) | 9.00mm |
| Shank Diameter (Decimal Inch) | 0.354" |
| Shank Diameter (mm) | 9.00mm |
| Functional Length (Decimal Inch) | 4.185" |
| Functional Length (mm) | 106.30mm |
| Usable Length (Decimal Inch) | 3.268" |
| Usable Length (mm) | 83.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.709" |
| Thread Length (mm) | 18.00mm |
| Thread Diameter Size | M12 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.443" |
| Recommended Premachined Hole Diameter (mm) | 11.25mm |
| Connection Size Code | 9.00X7.00 |
| Connection Size Code Machine Side | 9.00X7.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.443" |
| Maximum Premachined Hole Diameter (mm) | 11.25mm |
| Minimum Thread Pitch (Decimal Inch) | 0.069" |
| Minimum Thread Pitch (mm) | 1.75mm |
| Maximum Thread Pitch (Decimal Inch) | 0.069" |
| Maximum Thread Pitch (mm) | 1.75mm |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | None |
| Material | HSS-E-PM |
| Coating | TiAIN+TiN |

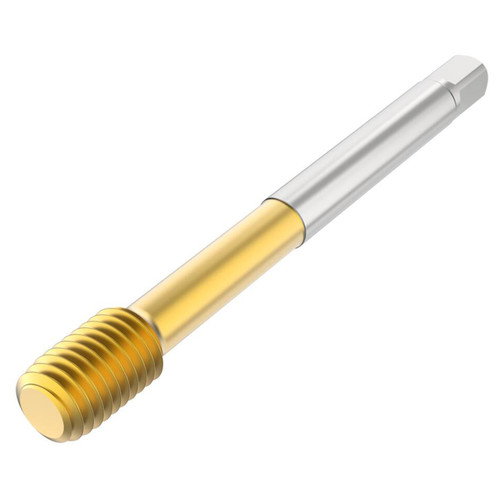

| Product Type | Thread Forming Tap |
