Product Specifications

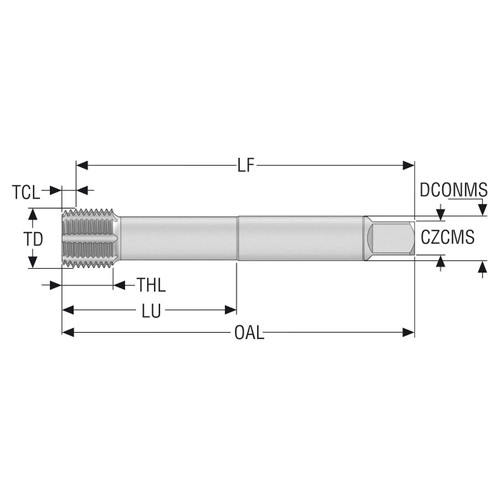

| Manufacturer Part Number | 10139252 |
| Thread Diameter (Decimal Inch) | 0.383" |
| Thread Diameter (mm) | 9.73mm |
| Threading Chamfer Length (Decimal Inch) | 0.102" |
| Threading Chamfer Length (mm) | 2.60mm |
| Tap Chamfer Length (Decimal Inch) | 0.102" |
| Tap Chamfer Length (mm) | 2.60mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.276" |
| Connection Diameter Machine Side (mm) | 7.00mm |
| Shank Diameter (Decimal Inch) | 0.276" |
| Shank Diameter (mm) | 7.00mm |
| Functional Length (Decimal Inch) | 3.441" |
| Functional Length (mm) | 87.40mm |
| Usable Length (Decimal Inch) | 2.638" |
| Usable Length (mm) | 67.00mm |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | G1/8-28 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.364" |
| Recommended Premachined Hole Diameter (mm) | 9.25mm |
| Connection Size Code | 7.00X5.50 |
| Connection Size Code Machine Side | 7.00X5.50 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.364" |
| Maximum Premachined Hole Diameter (mm) | 9.25mm |
| Minimum Threads Per Inch (mm) | 28.00mm |
| Maximum Threads Per Inch (mm) | 28.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal-X |
| Threading Chamfer Type | C |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Thread Size:
G1/8-28
Number of Flutes:
5
Finish/Coating:
TiAIN+TiN
Material:
HSS-E
Thread Standard:
G
