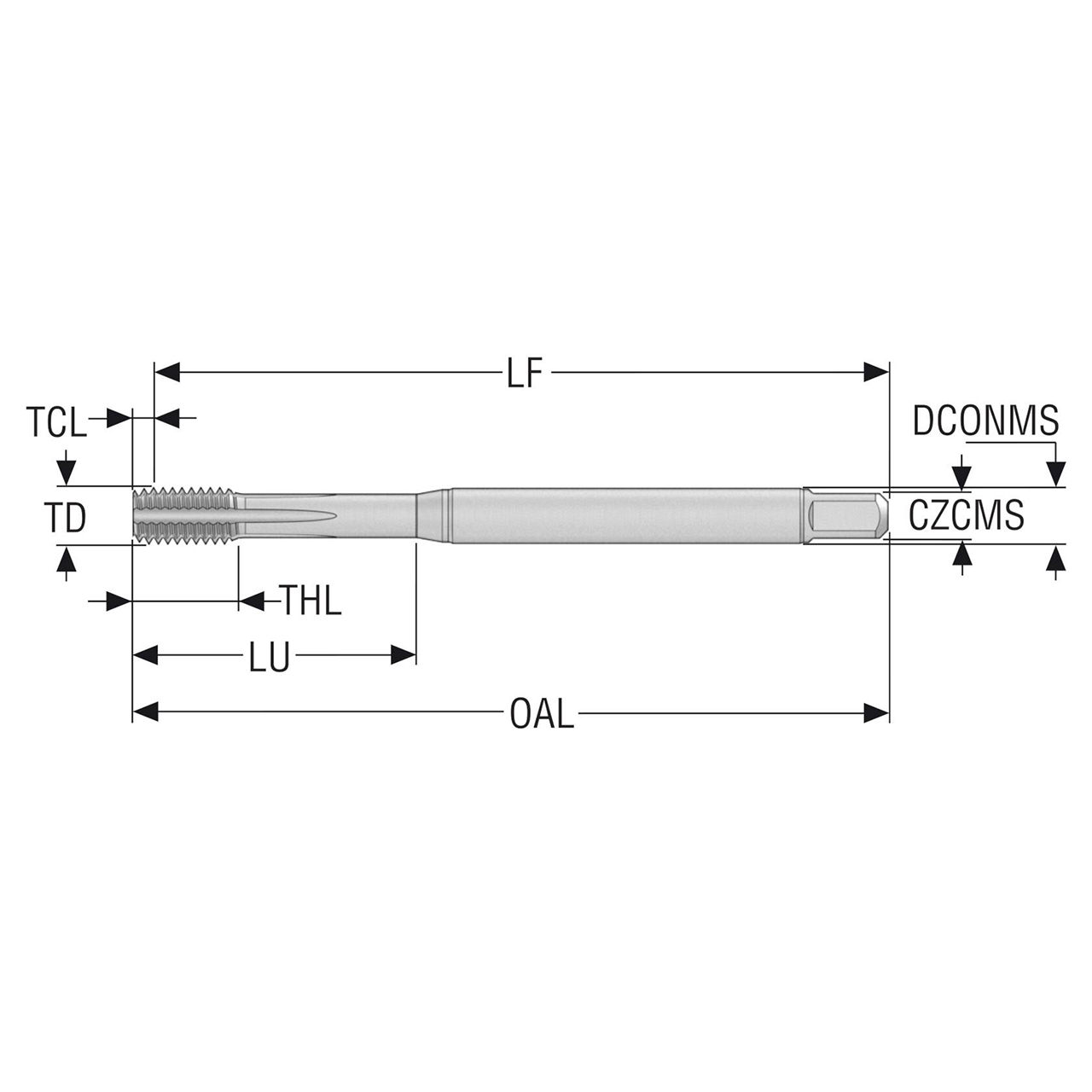

| Manufacturer Part Number | 10139290 |
| Thread Diameter (Decimal Inch) | 0.197" |
| Thread Diameter (mm) | 5.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.059" |
| Threading Chamfer Length (mm) | 1.50mm |
| Tap Chamfer Length (Decimal Inch) | 0.059" |
| Tap Chamfer Length (mm) | 1.50mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.697" |
| Functional Length (mm) | 68.50mm |
| Usable Length (Decimal Inch) | 0.984" |
| Usable Length (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 2.756" |
| Overall Length (mm) | 70.00mm |
| Thread Length (Decimal Inch) | 0.315" |
| Thread Length (mm) | 8.00mm |
| Thread Diameter Size | M5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.183" |
| Recommended Premachined Hole Diameter (mm) | 4.65mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.183" |
| Maximum Premachined Hole Diameter (mm) | 4.65mm |
| Minimum Thread Pitch (Decimal Inch) | 0.032" |
| Minimum Thread Pitch (mm) | 0.80mm |
| Maximum Thread Pitch (Decimal Inch) | 0.032" |
| Maximum Thread Pitch (mm) | 0.80mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | E |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |

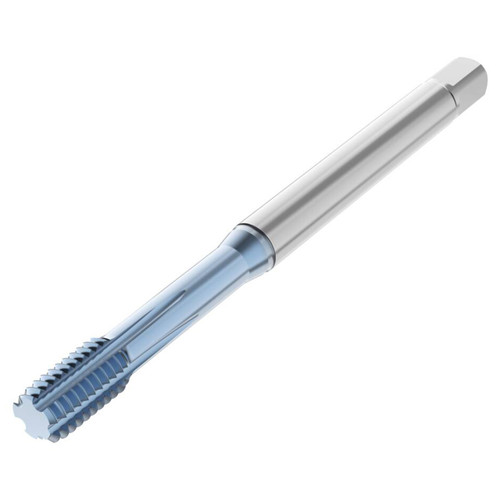

| Product Type | Thread Forming Tap |
