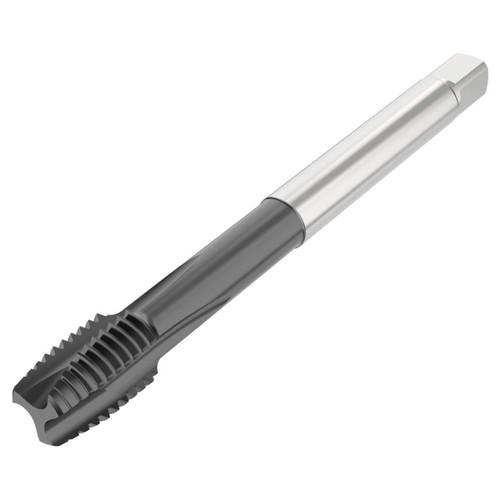

| Manufacturer Part Number | 10139331 |
| Thread Diameter (Decimal Inch) | 1.299" |
| Thread Diameter (mm) | 33.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.625" |
| Threading Chamfer Length (mm) | 15.87mm |
| Tap Chamfer Length (Decimal Inch) | 0.625" |
| Tap Chamfer Length (mm) | 15.87mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.984" |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (Decimal Inch) | 0.984" |
| Shank Diameter (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 6.462" |
| Functional Length (mm) | 164.13mm |
| Usable Length (Decimal Inch) | 4.449" |
| Usable Length (mm) | 113.00mm |
| Overall Length (Decimal Inch) | 7.087" |
| Overall Length (mm) | 180.00mm |
| Thread Length (Decimal Inch) | 1.378" |
| Thread Length (mm) | 35.00mm |
| Thread Diameter Size | M33 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.161" |
| Recommended Premachined Hole Diameter (mm) | 29.50mm |
| Connection Size Code | 25.00X20.00 |
| Connection Size Code Machine Side | 25.00X20.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.172" |
| Maximum Premachined Hole Diameter (mm) | 29.77mm |
| Minimum Thread Pitch (Decimal Inch) | 0.138" |
| Minimum Thread Pitch (mm) | 3.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.138" |
| Maximum Thread Pitch (mm) | 3.50mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
