Seco Tools 10139423 | T34-PH17B06-1/2-20-21R EGUNF1/2-20 Thread Size x 0.565" Diameter x 0.433" Shank x 3.937" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

$202.86
Brand:
Seco Tools
Thread Size:
EGUNF1/2-20
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Thread Standard:
EGUNF
interval quantity:
1
SKU:
17994299
Weight:
0.15 LBS
Shipping:
Free Shipping
Seco Tools 10139423 | T34-PH17B06-1/2-20-21R EGUNF1/2-20 Thread Size x 0.565" Diameter x 0.433" Shank x 3.937" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

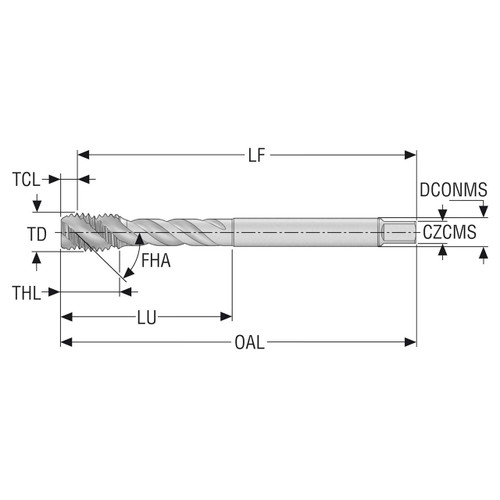

Product Specifications
Manufacturer Part Number10139423
Thread Diameter (Decimal Inch)0.565"
Thread Diameter (mm)14.35mm
Threading Chamfer Length (Decimal Inch)0.244"
Threading Chamfer Length (mm)6.20mm
Tap Chamfer Length (Decimal Inch)0.244"
Tap Chamfer Length (mm)6.20mm
Connection Diameter Machine Side (Decimal Inch)0.433"
Connection Diameter Machine Side (mm)11.00mm
Shank Diameter (Decimal Inch)0.433"
Shank Diameter (mm)11.00mm
Functional Length (Decimal Inch)3.693"
Functional Length (mm)93.80mm
Usable Length (Decimal Inch)2.795"
Usable Length (mm)71.00mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.591"
Thread Length (mm)15.00mm
Thread Diameter SizeEGUNF1/2-20
Recommended Premachined Hole Diameter (Decimal Inch)0.516"
Recommended Premachined Hole Diameter (mm)13.10mm
Connection Size Code11.00X9.00
Connection Size Code Machine Side11.00X9.00
Maximum Premachined Hole Diameter (Decimal Inch)0.519"
Maximum Premachined Hole Diameter (mm)13.17mm
Minimum Threads Per Inch (mm)20.00mm
Maximum Threads Per Inch (mm)20.00mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class2B
Threading Chamfer TypeB
Thread Form TypeEGUNF
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeStraight Flute Tap
