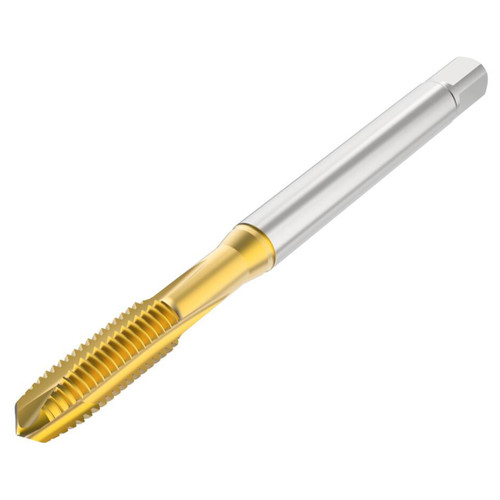

Seco Tools 10139428 | T32-PN01B03-1.1X0.25-41R M1.1 Thread Size x 0.043" Diameter x 0.098" Shank x 1.614" OAL 2 Flute TiAIN+TiN Coated HSS-PM Straight Flute Tap

$103.50
Brand:
Seco Tools
Thread Size:
M1.1
Overall Length (Inch):
1-35/57"
Overall Length (Decimal Inch):
1.6140"
Overall Length (mm):
41.00mm
Number of Flutes:
2
Material:
HSS-PM
Finish/Coating:
TiAIN+TiN
Thread Standard:
M
interval quantity:
1
SKU:
17994304
Weight:
0.00 LBS
Shipping:
Free Shipping
Seco Tools 10139428 | T32-PN01B03-1.1X0.25-41R M1.1 Thread Size x 0.043" Diameter x 0.098" Shank x 1.614" OAL 2 Flute TiAIN+TiN Coated HSS-PM Straight Flute Tap

Product Specifications
Manufacturer Part Number10139428
Thread Diameter (Decimal Inch)0.043"
Thread Diameter (mm)1.10mm
Threading Chamfer Length (Decimal Inch)0.045"
Threading Chamfer Length (mm)1.13mm
Tap Chamfer Length (Decimal Inch)0.045"
Tap Chamfer Length (mm)1.13mm
Connection Diameter Machine Side (Decimal Inch)0.098"
Connection Diameter Machine Side (mm)2.50mm
Shank Diameter (Decimal Inch)0.098"
Shank Diameter (mm)2.50mm
Functional Length (Decimal Inch)1.530"
Functional Length (mm)38.87mm
Usable Length (Decimal Inch)0.512"
Usable Length (mm)13.00mm
Overall Length (Decimal Inch)1.614"
Overall Length (mm)41.00mm
Thread Length (Decimal Inch)0.236"
Thread Length (mm)6.00mm
Thread Diameter SizeM1.1
Recommended Premachined Hole Diameter (Decimal Inch)0.034"
Recommended Premachined Hole Diameter (mm)0.85mm
Connection Size Code2.50X2.10
Connection Size Code Machine Side2.50X2.10
Maximum Premachined Hole Diameter (Decimal Inch)0.035"
Maximum Premachined Hole Diameter (mm)0.89mm
Minimum Thread Pitch (Decimal Inch)0.010"
Minimum Thread Pitch (mm)0.25mm
Maximum Thread Pitch (Decimal Inch)0.010"
Maximum Thread Pitch (mm)0.25mm
Number of Flute2
Shank TypeCylindrical
Thread Tolerance Class4H
Threading Chamfer TypeB
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeT32
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-PM
CoatingTiAIN+TiN
Product TypeStraight Flute Tap
