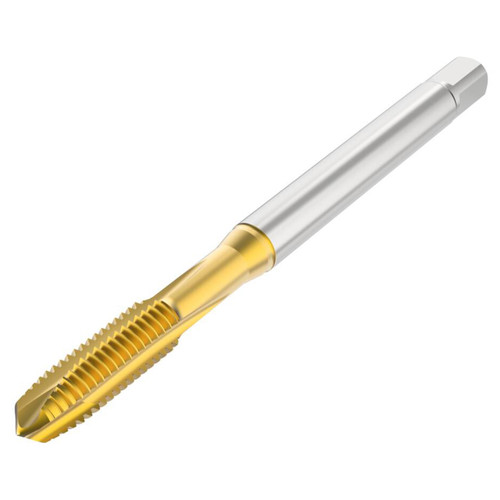

| Manufacturer Part Number | 10139461 |
| Thread Diameter (Decimal Inch) | 0.190" |
| Thread Diameter (mm) | 4.83mm |
| Threading Chamfer Length (Decimal Inch) | 0.150" |
| Threading Chamfer Length (mm) | 3.80mm |
| Tap Chamfer Length (Decimal Inch) | 0.150" |
| Tap Chamfer Length (mm) | 3.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.606" |
| Functional Length (mm) | 66.20mm |
| Usable Length (Decimal Inch) | 0.984" |
| Usable Length (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 2.835" |
| Overall Length (mm) | 72.00mm |
| Thread Length (Decimal Inch) | 0.551" |
| Thread Length (mm) | 14.00mm |
| Thread Diameter Size | UNF10-32 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.161" |
| Recommended Premachined Hole Diameter (mm) | 4.10mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.164" |
| Maximum Premachined Hole Diameter (mm) | 4.17mm |
| Minimum Threads Per Inch (mm) | 32.00mm |
| Maximum Threads Per Inch (mm) | 32.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | B |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Straight Flute Tap |
